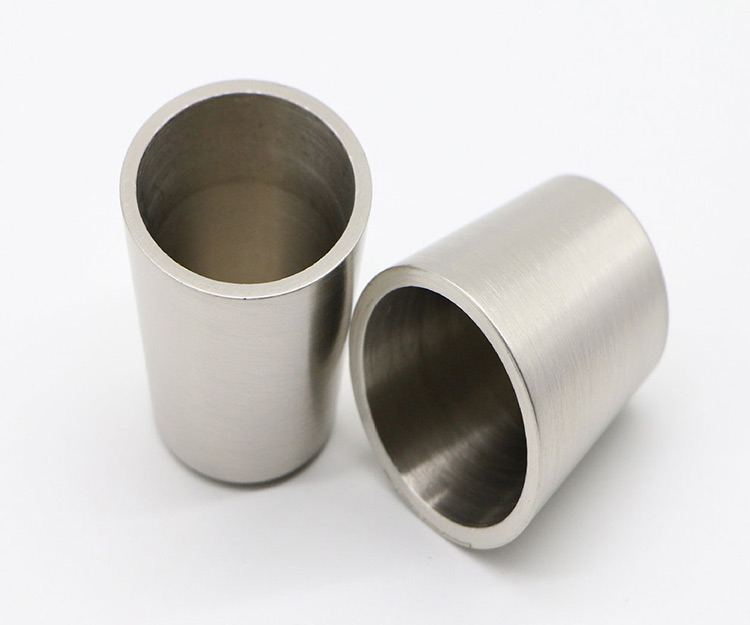

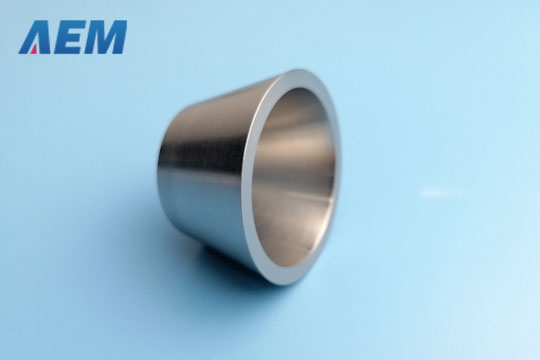

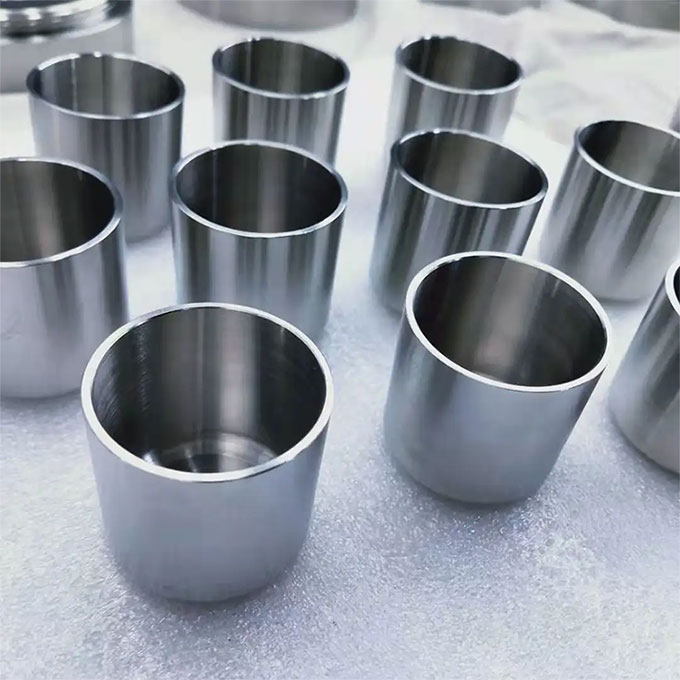

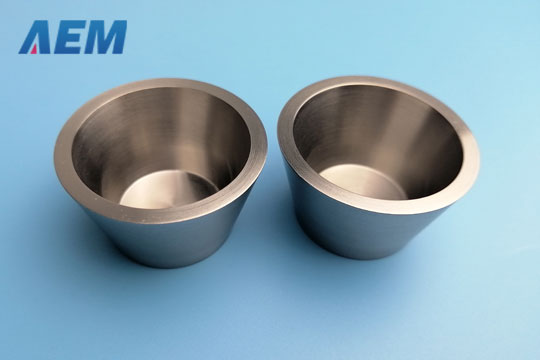

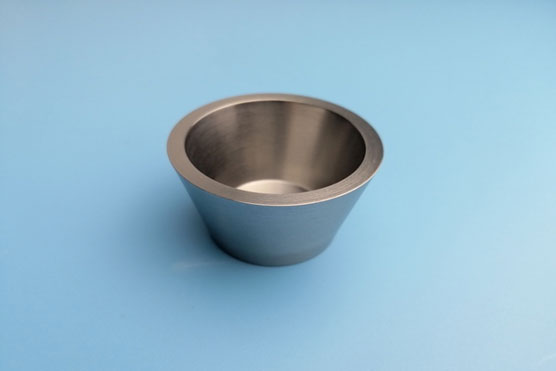

Tantalum Crucible (Ta)

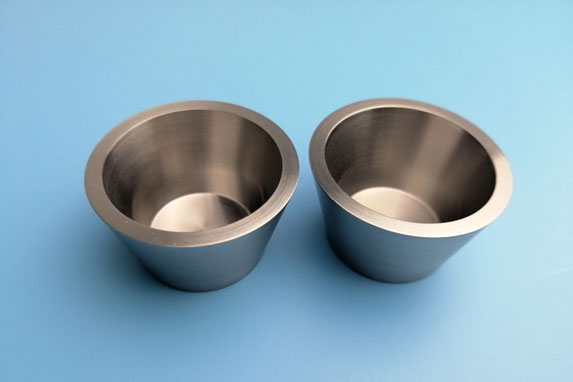

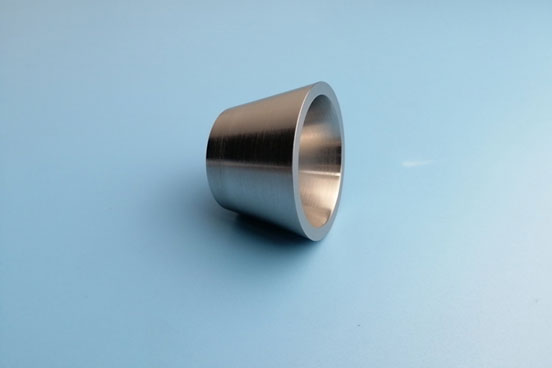

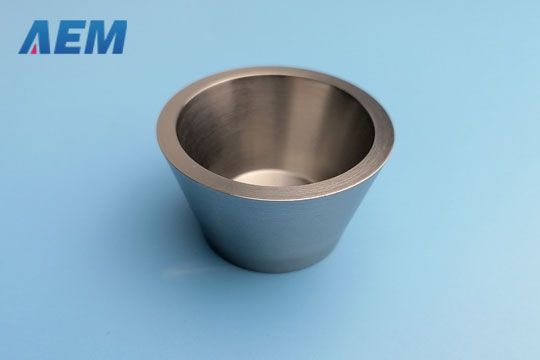

Tantalum Crucible
Tantalum (Ta) is one of the most corrosion-resistant metals, and it has the fourth-highest melting point of all metals. Tantalum crucible is a vital furnace container for rare-earth metallurgy because of its excellent corrosion resistance properties. It is also an excellent material for laboratory crucibles.
Tantalum Crucible Information
Product | Tantalum (Ta) Crucibles | ||
Material | Ta | ||
Purity | 99.5%~99.99% | ||
Surface | Finish turning, Polishing | ||
Shape | Arc/Square/Rectangle/Cylinder/Boat | ||
Capacity | 1-2000 ml | ||
Density | 16.7 g/cm3 | ||
Melting Point | 2996℃ |

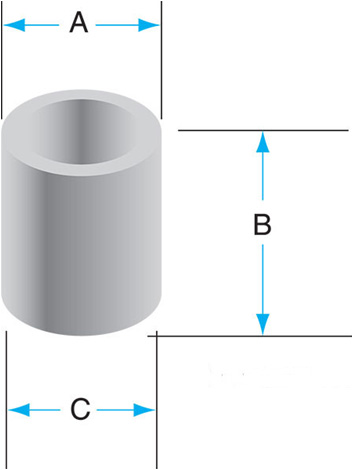

Tantalum Crucible Dimension
Type | Top Diameter | Bottom Diameter | Height | Thickness | Volume |
---|---|---|---|---|---|
T-5 | A=21 mm | C=21 mm | B=18 mm | 2 mm | 5 ml |
T-6 | A=27 mm | C=27 mm | B=22 mm | 2 mm | 10 ml |
T-15 | A=33mm | C=33 mm | B=22 mm | 2 mm | 15 ml |
T-20 | A=33mm | C=33 mm | B=29 mm | 2 mm | 20 ml |
T-45 | A=46 mm | C=46 mm | B=34 mm | 2 mm | 45 ml |
T-55 | A=47 mm | C=47 mm | B=41 mm | 2 mm | 55 ml |
T-75 | A=51 mm | C=51 mm | B=41 mm | 2 mm | 75 ml |
T-100 | A=59 mm | C=59 mm | B=45 mm | 2 mm | 100 ml |
T-1000 | A=127 mm | C=127 mm | B=89 mm | 2 mm | 1000 ml |
The customized sizes can be provided according to the customers' design. | |||||
Tantalum Crucible Application
- Used as a substitute for platinum

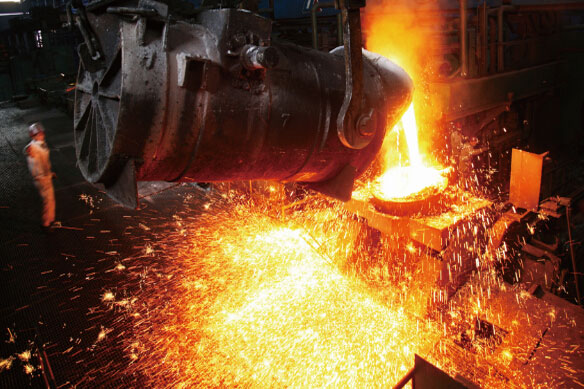

- Used in metallurgical, machinery processing, glass, and ceramic industries
- Used in manufacturing superalloys and electron-beam melting
- Laboratory uses
