Lead Evaporation Material (Pb)

Lead Evaporation Material (Pb)
Lead Evaporation Material (Pb)
Material Type Lead
Symbol Pb
Atomic Weight 207.2
Atomic Number 82
Color/Appearance Bluish White, Metallic
Thermal Conductivity 35 W/m.K
Melting Point (°C) 328
Coefficient of Thermal Expansion 28.9 x 10-6/K
Theoretical Density (g/cc) 11.34
Z Ratio 1.13
E-Beam Excellent
Thermal Evaporation Techniques Boat:  W, Mo
Coil:  W
Basket:  W, Ta
Crucible:  Al2O3, Q
E-Beam Crucible Liner Material Fabmate®
Temp. (°C) for Given Vap. Press. (Torr) 10-8:  342
10-6:  427
10-4:  497


Lead is a chemical element with symbol Pb (from the Latin plumbum) and atomic number 82. It is a heavy metal that is denser than most common materials. Lead is soft and malleable, and has a relatively low melting point. When freshly cut, lead is bluish-white; it tarnishes to a dull gray color when exposed to air. Lead has the highest atomic number of any stable element and concludes three major decay chains of heavier elements.

Material Notes

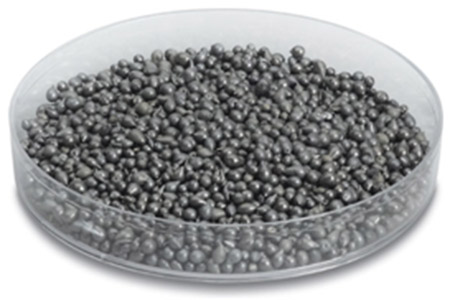

AEM Deposition provides Lead pellets, Lead pieces and Lead powder for sale, purity is 99.995%.

Click for a downloadable datasheet on the Lead Evaporation Material (Pb)
Can't find the downloadable datasheet you need? Click here to send email to get it.
