Lead Sulfide Sputtering Targets (PbS)
| Material Type | Lead Sulfide |
| Symbol | PbS |
| Color/Appearance | Black, Solid |
| Melting Point (°C) | 1,114 |
| Theoretical Density (g/cc) | 7.50 |
| Water Solubility (g/L) | 0.00086 |
| Sputter | RF, RF-R, DC |
| Type of Bond | Indium, Elastomer |
| Comments |

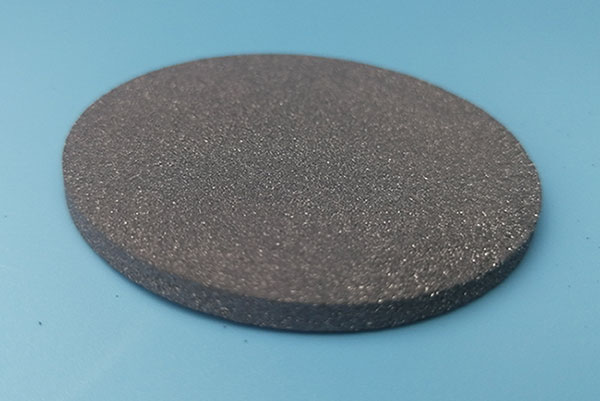

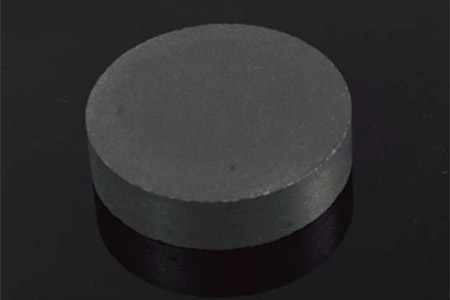

Lead Sulfide Sputtering Target
Lead(II) sulfide (also spelled sulphide) is an inorganic compound with the formula PbS. PbS, also known as galena, is the principal ore, and most important compound of lead. It is a semiconducting material with niche uses.
Lead Sulfide Sputtering Target Information
Lead Sulfide Sputtering Target
Purity is 99.9%;
Circular: Diameter <= 14inch, Thickness >= 1mm;
Block: Length <= 32inch, Width <= 12inch, Thickness >= 1mm.
Other Information of Lead Sulfide Sputtering Target
Applications• PVD and CVD display• Semiconductor • Optical |
Features• High purity• Custom Sizes Available |
Manufacturing Process• Manufacturing - Cold pressed - Sintered, Elastomer bonded to backing plate
• Cleaning and final packaging, Cleaned for use in vacuum, |
Options• 99.9% ex Strontium Minimum Purity• Up to 12'' Diameter Targets Available • Planar Tiles Up to 8'' X 5'' for Larger Target Configurations |
