AEM Deposition

Antimony Evaporation Material (Sb)

Antimony Evaporation Material (Sb)
Antimony Evaporation Material (Sb)
Material Type Antimony
Symbol Sb
Atomic Weight 121.76
Atomic Number 51
Color/Appearance Silvery, Lustrous Gray, Semi-metallic
Thermal Conductivity 24 W/m.K
Melting Point (°C) 630
Coefficient of Thermal Expansion 11 x 10-6/K
Theoretical Density (g/cc) 6.68
Z Ratio 0.768
E-Beam Poor
Thermal Evaporation Techniques Boat:  Mo*** Ta***
Coil:  Mo, Ta
Basket:  Mo, Ta
Crucible:  BN, C, Al2O3
Temp. (°C) for Given Vap. Press. (Torr) 10-8:  279
10-6:  345
10-4:  425
Comments Evaporates well.


Antimony is a chemical element with symbol Sb and atomic number 51. A lustrous gray metalloid, it is found in nature mainly as the sulfide mineral stibnite (Sb2S3). Antimony compounds have been known since ancient times and were powdered for use as medicine and cosmetics, often known by the Arabic name, kohl. The largest applications for metallic antimony is an alloy with lead and tin and the lead antimony plates in lead–acid batteries. Alloys of lead and tin with antimony have improved properties for solders, bullets, and plain bearings. Antimony compounds are prominent additives for chlorine and bromine-containing fire retardants found in many commercial and domestic products. An emerging application is the use of antimony in microelectronics.

Material Notes

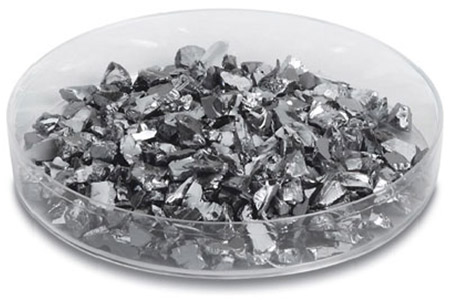

AEM Deposition provides Antimony pieces and Antimony powder for sale, purity is from 99.999% to 99.99999%.

Click for a downloadable datasheet on the Antimony Evaporation Material (Sb)
Can't find the downloadable datasheet you need? Click here to send email to get it.
Click here for answers to some of the most common questions we get asked.
