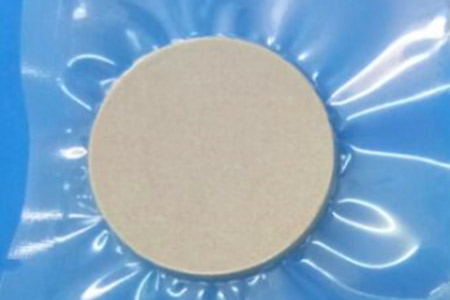

Antimony Oxide Sputtering Targets (Sb2O3)
| Material Type | Antimony Oxide |
| Symbol | Sb2O3 |
| Color/Appearance | White, Crystalline Solid |
| Melting Point (°C) | 656 |
| Theoretical Density (g/cc) | 5.60 |
| Z Ratio | |
| Sputter | RF-R |
|
Max Power Density* (Watts/Square Inch) |
20 |
| Type of Bond | Indium, Elastomer |
| Comments |
Antimony Oxide Sputtering Targets
Antimony (III) oxide is the inorganic compound with the formula Sb2O3. It is the most important commercial compound of antimony. It is found in nature as the minerals Valentinite and Senarmontite. Like most polymeric oxides, Sb2O3 dissolves in aqueous solutions with hydrolysis.
Antimony Oxide Sputtering Targets Information
Antimony Oxide Sputtering Targets
Purity: 99.99%;
Circular: Diameter <= 14 inch, Thickness >= 1 mm;
Block: Length <= 32 inch, Width <= 12 inch, Thickness >= 1 mm.
More Information on Antimony Oxide Sputtering Targets
Applications• Ferroelectric• Gate Dielectric • For CMOS |
Features• High purity• Custom sizes available |
Manufacturing Process• Manufacturing - Cold pressed - Sintered, Elastomer bonded to backing plate
• Cleaning and final packaging, Cleaned for use in vacuum, |
Options
• 99.99 minimum purity
• Smaller sizes also available for R&D applications
• Sputtering target bonding service
|
