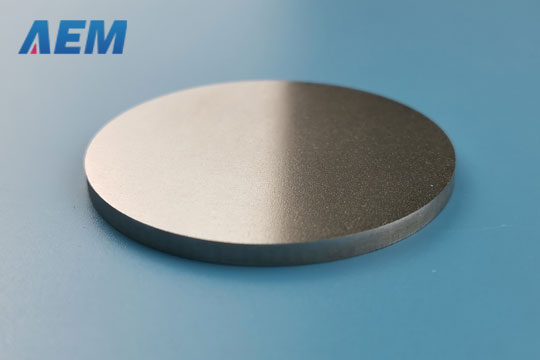

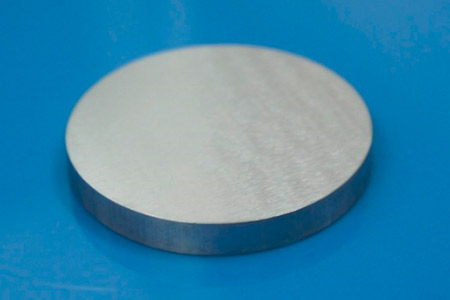

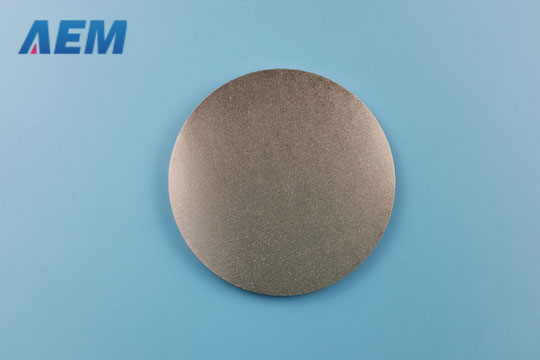

Ruthenium Sputtering Targets (Ru)

Ruthenium Sputtering Targets (Ru)
Material Type Ruthenium
Symbol Ru
Atomic Weight 101.07
Atomic Number 44
Color/Appearance Silvery White Metallic
Thermal Conductivity 120 W/m.K
Melting Point (°C) 2,310
Coefficient of Thermal Expansion 6.4 x 10-6/K
Theoretical Density (g/cc) 12.3
Z Ratio 0.182
Sputter DC
Max Power Density*
(Watts/Square Inch)
100
Type of Bond Indium, Elastomer

General

Ruthenium is a chemical element with symbol Ru and atomic number 44. It is a rare transition metal belonging to the platinum group of the periodic table. Like the other metals of the platinum group, ruthenium is inert to most other chemicals. Ruthenium is usually found as a minor component of platinum ores; the annual production is about 20 tonnes. Most ruthenium produced is used in wear-resistant electrical contacts and thick-film resistors. A minor application for ruthenium is in platinum alloys and as a chemistry catalyst.

Material Notes

Ruthenium Sputtering Targets, Purity is 99.9%; Circular: Diameter <= 14inch, Thickness >= 1mm; Block: Length <= 32inch, Width <= 12inch, Thickness >= 1mm. Bonding is recommended for these materials. Many materials have characteristics which are not amenable to sputtering, such as, brittleness and low thermal conductivity.This material may require special ramp up and ramp down procedures. This process may not be necessary with other materials. Targets that have a low thermal conductivity are susceptible to thermal shock.



Other Information of Ruthenium Sputtering Targets

Applications
Electronics
• Semiconductor
• Flat panel displays
Features
Competitive pricing
• High purity
• Grain refined, engineered microstructure
• Semiconductor grade

Manufacturing Process
Refining
  Three-layer electrolytic process
• Melting and casting
  Electrical resistance furnace - Semi-continuous casting
• Grain refinement
  Thermomechanical treatment

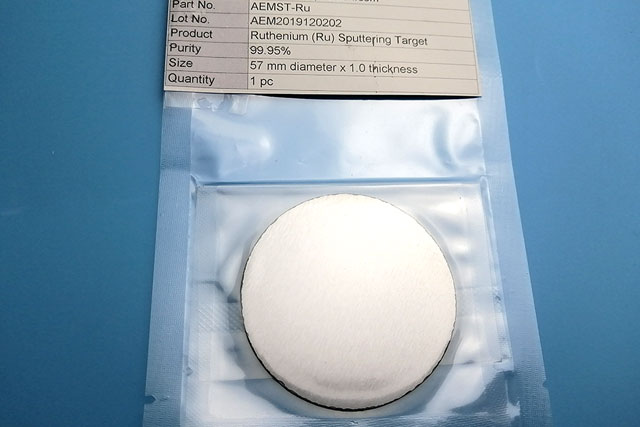

• Cleaning and final packaging - Cleaned for use in vacuum
  Protection from environmental contaminants
  Protection during shipment
Options
99.999% minimum purity
• Semiconductor grade aluminum alloys available
  Al/Si,Al/Cu,Al/Cu/Si
• Planar circular targets up to 18'' (457mm) diameter
• Planar tiles up to 48'' (1200mm) X 15.75'' (400mm) for larger target configurations
• Smaller sizes also available for R&D applications
• Sputtering target bonding service
