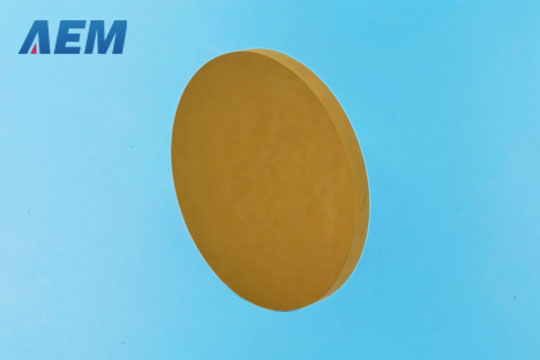

Vanadium Oxide Sputtering Targets (V2O5)

Vanadium Oxide Sputtering Targets (V2O5)
Material Type Vanadium (V) Oxide
Symbol V2O5
Color/Appearance Orange-Yellow, Crystalline Solid
Melting Point (°C) 690
Theoretical Density (g/cc) 3.36
Z Ratio **1.00
Sputter RF
Type of Bond Indium, Elastomer

General

Vanadium(V) oxide (vanadia) is the inorganic compound with the formula V2O5. Commonly known as vanadium pentoxide, it is a brown/yellow solid, although when freshly precipitated from aqueous solution, its colour is deep orange. Because of its high oxidation state, it is both an amphoteric oxide and an oxidizing agent. From the industrial perspective, it is the most important compound of vanadium, being principal precursor to alloys of vanadium and is a widely used industrial catalyst.

Material Notes

Vanadium(V) Oxide Sputtering Target, Purity is 99.9%; Circular: Diameter <= 14inch, Thickness >= 1mm; Block: Length <= 32inch, Width <= 12inch, Thickness >= 1mm.





Other Information of Vanadium Oxide Sputtering Targets

Applications
  Ferroelectric
• Gate Dielectric

• For CMOS

Features
• High purity
• Custom Sizes Available

Manufacturing Process
• Manufacturing - Cold pressed - Sintered, Elastomer bonded to backing plate

• Cleaning and final packaging, Cleaned for use in vacuum,
Protection from environmental contaminants
Protection during shipment

Options
• 99.9% ex Strontium Minimum Purity

• Up to 12'' Diameter Targets Available

• Planar Tiles Up to 8'' X 5'' for Larger Target Configurations
