Dysprosium Evaporation Material (Dy)

Dysprosium Evaporation Material (Dy)
Material Type Dysprosium
Symbol Dy
Atomic Weight 162.5
Atomic Number 66
Color/Appearance Silvery White, Metallic
Thermal Conductivity 11 W/m.K
Melting Point (°C) 1,412
Coefficient of Thermal Expansion 9.9 x 10-6/K
Theoretical Density (g/cc) 8.55
Z Ratio 0.6
E-Beam Good
Thermal Evaporation Techniques Boat:  Ta
E-Beam Crucible Liner Materia Direct in Hearth
Temp. (°C) for Given Vap. Press. (Torr) 10-8:  625
10-6:  750
10-4:  900

General

Dysprosium is a chemical element with symbol Dy and atomic number 66. It is a rare earth element with a metallic silver luster. Dysprosium is never found in nature as a free element, though it is found in various minerals, such as xenotime. Naturally occurring dysprosium is composed of seven isotopes, the most abundant of which is 164Dy.

Material Notes

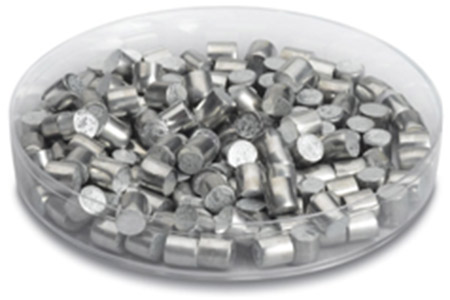

AEM Deposition provides Dysprosium pieces, and Dysprosium powder for sale, purity is 99.9%.
