Dysprosium Sputtering Targets (Dy)
| Material Type | Dysprosium |
| Symbol | Dy |
| Atomic Weight | 162.5 |
| Atomic Number | 66 |
| Color/Appearance | Silvery White, Metallic |
| Thermal Conductivity | 11 W/m.K |
| Melting Point (°C) | 1,412 |
| Coefficient of Thermal Expansion | 9.9 x 10-6/K |
| Theoretical Density (g/cc) | 8.55 |
| Z Ratio | 0.6 |
| Sputter | DC |
Dysprosium Sputtering Targets
Dysprosium is a chemical element with the symbol Dy and atomic number 66. It is a rare earth element with a metallic silver luster. Dysprosium is never found in nature as a free element, though it is found in various minerals, such as Xenotime. Naturally occurring dysprosium is composed of seven isotopes, the most abundant of which is 164Dy.
Dysprosium Sputtering Targets Information

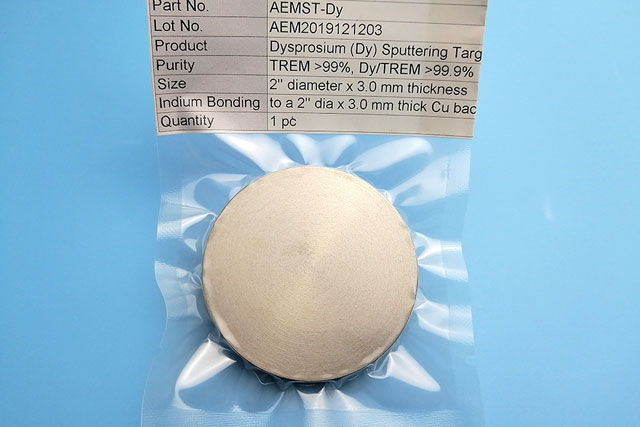

Dysprosium Sputtering Targets
Purity: 99.9%;
Circular: Diameter <= 14 inch, Thickness >= 1mm;
Block: Length <= 32 inch, Width <= 12 inch, Thickness >= 1mm.
Targets Type: Planar sputtering target, Rotary sputtering target.
More Information on Dysprosium Sputtering Targets
Applications• Electronics• Semiconductor • Flat panel displays |
Features• Competitive pricing• High purity • Grain refined, Engineered microstructure • Semiconductor grade |
Manufacturing Process• RefiningThree-layer electrolytic process • Melting and casting Electrical resistance furnace - Semi-continuous casting • Grain refinement Thermomechanical treatment • Cleaning and final packaging - Cleaned for use in vacuum Protection from environmental contaminants Protection during shipment |
Options• 99.9% minimum purity• Semiconductor grade dysprosium compound targets Bi2DyFe4GaO12, Dy2O3 • Smaller sizes also available for R&D applications • Sputtering target bonding service |
