Zinc Sulfide Sputtering Targets (ZnS)
| Material Type | Zinc Sulfide |
| Symbol | ZnS |
| Color/Appearance | White, Crystalline Solid |
| Melting Point (°C) | 1,700 |
| Z Ratio | 0.775 |
| Sputter | RF |
|
Max Power Density* (Watts/Square Inch) |
20 |
| Type of Bond | Indium, Elastomer |
| Comments | Preheat gently to outgas. Films partially decompose. n=2.356. |
Zinc Sulfide Sputtering Targets
Zinc sulfide (or zinc sulphide) is an inorganic compound with the chemical formula of ZnS. It is the main form of zinc found in nature, where it mainly occurs as the mineral sphalerite. Although this mineral is usually black because of various impurities, the pure material is white and widely used as a pigment. In its dense synthetic form, zinc sulfide can be transparent, and it is used as a window for visible optics and infrared optics.
Zinc Sulfide Sputtering Targets Information

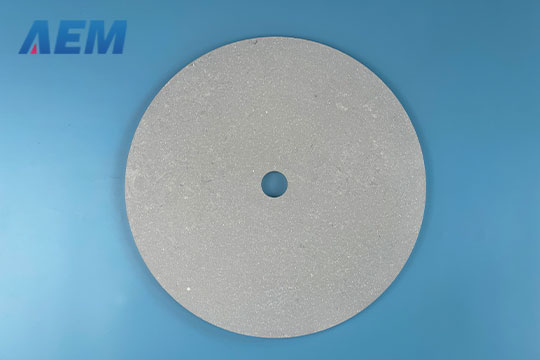

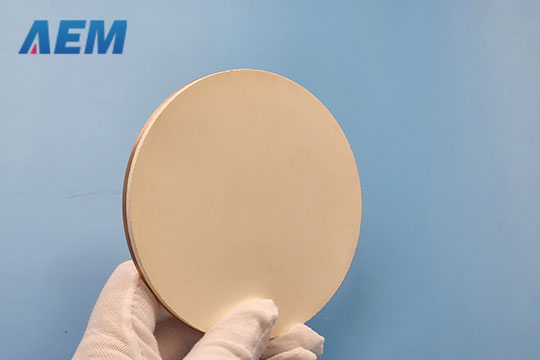

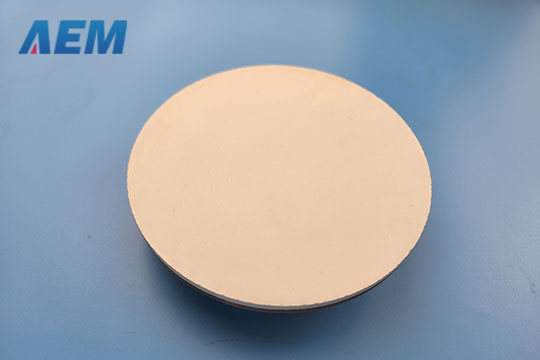

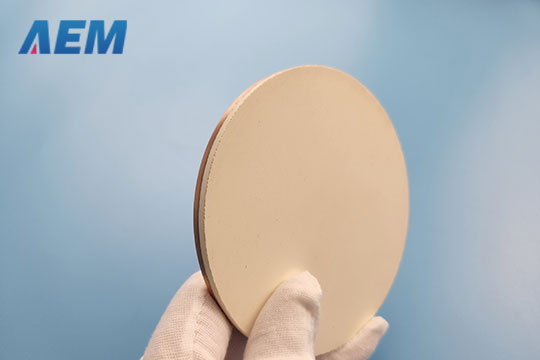

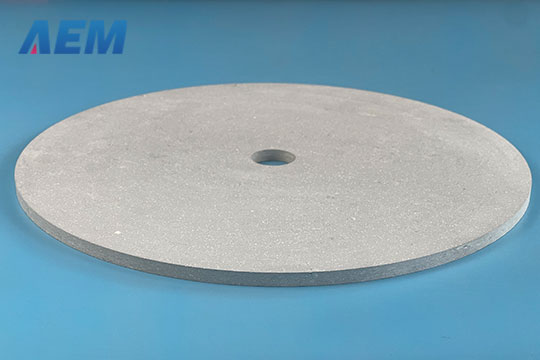

Zinc Sulfide Sputtering Target
Purity: 99.99%;
Circular: Diameter <= 14 inch, Thickness >= 1mm;
Block: Length <= 1.4m(by several pieces custruction), Width <= 12 inch, Thickness >= 1mm.
Bonding is recommended for these materials. Many materials have characteristics that are not amenable to sputtering, such as brittleness and low thermal conductivity. This material may require a special ramp up and ramp down procedures. This process may not be necessary for other materials. Targets that have low thermal conductivity are susceptible to thermal shock.
More Information on Zinc Sulfide Sputtering Targets
Applications• Chemical Vapor Deposition (CVD)• Physical Vapor Deposition (PVD) • Semiconductor • Optical |
Features• High purity• Custom sizes available |
Manufacturing Process• Manufacturing - Hot pressed - Sintered, Elastomer bonded to backing plate
• Cleaning and final packaging, Cleaned for use in vacuum, |
Options
• 99.99% minimum purity
• Smaller sizes also available for R&D applications
• Sputtering target bonding service
|
