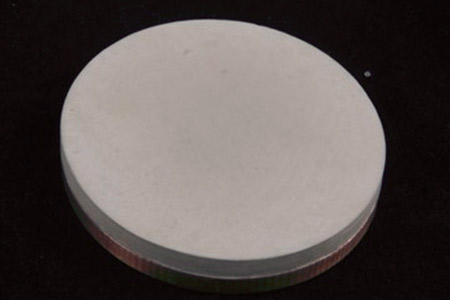

Neodymium Gadolinium Oxide Sputtering Targets (NdGdO3)

Neodymium Gadolinium Oxide Sputtering Targets (NdGdO3)
Material Type Neodymium Gadolinium Oxide
Symbol NdGdO3
Color/Appearance Various colors, Solid
Melting Point (°C) N/A
Theoretical Density (g/cc) N/A
Water Solubility Insoluble
Sputter RF, RF-R, DC
Type of Bond Indium, Elastomer
Comments

General



Material Notes

Neodymium Gadolinium Oxide Sputtering Targets, Purity is 99.9%; Circular: Diameter <= 14inch, Thickness >= 1mm; Block: Length <= 32inch, Width <= 12inch, Thickness >= 1mm.







Other Information of Neodymium Gadolinium Oxide Sputtering Targets

Applications
  Ferroelectric
• Gate Dielectric

• For CMOS

Features
• High purity
• Custom Sizes Available

Manufacturing Process
• Manufacturing - Cold pressed - Sintered, Elastomer bonded to backing plate

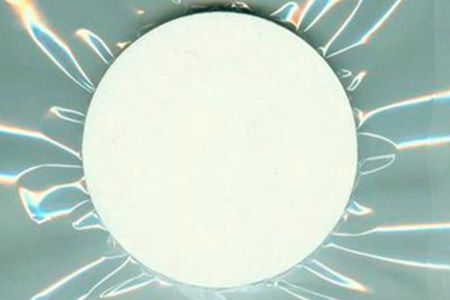

• Cleaning and final packaging, Cleaned for use in vacuum,
Protection from environmental contaminants
Protection during shipment

Options
99.9% ex Strontium Minimum Purity

•Up to 12'' Diameter Targets Available

•Planar Tiles Up to 8'' X 5'' for Larger Target Configurations
