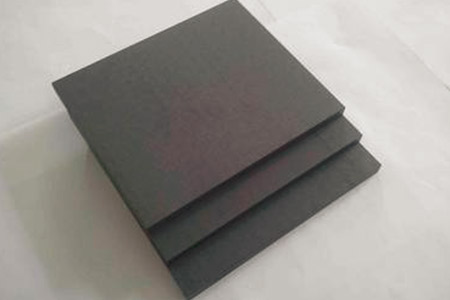

Niobium Oxide Sputtering Targets (Nb2O5)

Niobium Oxide Sputtering Targets (Nb2O5)
Material Type Niobium (V) Oxide
Symbol Nb2O5
Color/Appearance White, Crystalline Solid, Grey-Black
Melting Point (°C) 1,485
Theoretical Density (g/cc) 4.6
Z Ratio **1.00
Sputter RF, RF-R
Type of Bond Indium, Elastomer

General

Niobium pentoxide is the inorganic compound with the formula Nb2O5. It is a colourless insoluble solid that is fairly unreactive. It is the main precursor to all materials made of niobium, the dominant application being alloys, but other specialized applications include capacitors, lithium niobate, and optical glasses.

Material Notes

Niobium Pentoxide Sputtering Targets, Purity is 99.95%; Circular: Diameter <= 14inch, Thickness >= 1mm; Block: Length <= 32inch, Width <= 12inch, Thickness >= 1mm.





Other Information of Niobium Oxide Sputtering Targets

Applications
  Ferroelectric
• Gate Dielectric

• For CMOS

Features
• High purity
• Custom Sizes Available

Manufacturing Process
• Manufacturing - Cold pressed - Sintered, Elastomer bonded to backing plate

• Cleaning and final packaging, Cleaned for use in vacuum,
Protection from environmental contaminants
Protection during shipment

Options
• 99.9% ex Strontium Minimum Purity

• Up to 12'' Diameter Targets Available

• Planar Tiles Up to 8'' X 5'' for Larger Target Configurations
