Yttrium Oxide Pellet Evaporation Material (Y2O3)
| Material Type | Yttrium Oxide |
| Symbol | Y2O3 |
| Color/Appearance | White, Crystalline Solid |
| Melting Point (°C) | 2,410 |
| Theoretical Density (g/cc) | 5.01 |
| Z Ratio | **1.00 |
| E-Beam | Good |
| Thermal Evaporation Techniques |
Boat: W Crucible: C |
| E-Beam Crucible Liner Material | Fabmate®, Graphite, Tungsten |
| Temp. (°C) for Given Vap. Press. (Torr) | 10-4: ~2,000 |
| Comments | Loses oxygen; films smooth and clear. |

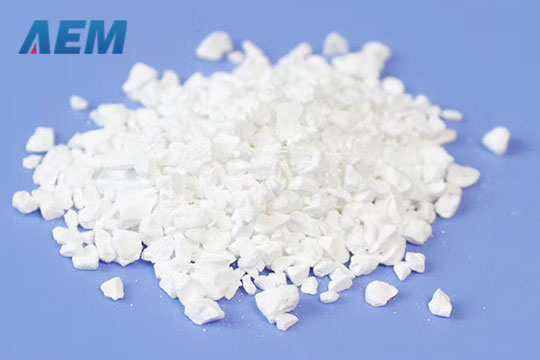

Yttrium Oxide Pellet
Yttrium oxide is a chemical compound with a chemical formula of Y2O3. It is white in color with a melting point of 2,410°C, a density of 5.01 g/cc, and vapor pressure of 10-4 Torr at ~2,000°C. It is considered to be the most crucial yttrium compound. Yttrium oxide is used to make phosphors, which provide the color red in televisions, and yttrium iron garnets are an essential element of microwave filters. It is evaporated under a vacuum for the fabrication of semiconductors and passive components.
Yttrium Oxide Pellet Information
AEM Deposition provides Yttrium Oxide pellets, Yttrium Oxide pieces, Yttrium Oxide powder for sale, and the purity is 99.9%.
