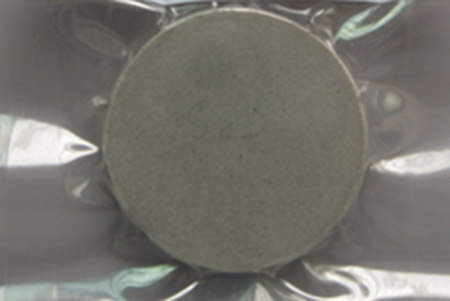

Strontium Oxide Sputtering Targets (SrO)

Strontium Oxide Sputtering Targets (SrO)
Material Type Strontium Oxide
Symbol SrO
Color/Appearance White to grey, Solid
Melting Point (°C) 2,430
Theoretical Density (g/cc) 4.70
Water Solubility Soluble
Sputter RF, RF-R, DC
Type of Bond Indium, Elastomer
Comments


General

Strontium Oxide or strontia, SrO, is formed when strontium reacts with oxygen. Burning strontium in air results in a mixture of strontium oxide and strontium nitride. It also forms from the decomposition of strontium carbonate SrCO3. It is a strongly basic oxide.

Material Notes

Strontium Oxide Sputtering Target, Purity is 99.5%; Circular: Diameter <= 14inch, Thickness >= 1mm; Block: Length <= 32inch, Width <= 12inch, Thickness >= 1mm.





Other Information of Strontium Oxide Sputtering Targets

Applications
  Ferroelectric
• Gate Dielectric

• For CMOS

Features
• High purity
• Custom Sizes Available

Manufacturing Process
• Manufacturing - Cold pressed - Sintered, Elastomer bonded to backing plate

• Cleaning and final packaging, Cleaned for use in vacuum,
Protection from environmental contaminants
Protection during shipment

Options
• 99.9% ex Strontium Minimum Purity

• Up to 12'' Diameter Targets Available

• Planar Tiles Up to 8'' X 5'' for Larger Target Configurations
