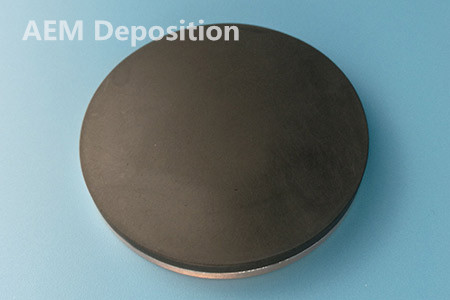

Lanthanum Strontium Cobalt Iron Oxide Sputtering Targets (LaxSr1-xCoyFe1-yO3)
| Material Type | Lanthanum Strontium Cobalt Iron Oxide |
| Symbol |
LSCF6428 (La0.6Sr0.4Co0.2Fe0.8O3), LSCF5582 (La0.5Sr0.5Co0.8Fe0.2O3) |
| Color/Appearance | Various colors, Solid |
| Melting Point (°C) | N/A |
| Relative Density (g/cc) | N/A |
| Z Ratio | N/A |
| Sputter | RF, RF-R, DC |
|
Max Power Density* (Watts/Square Inch) |
N/A |
| Type of Bond | Indium, Elastomer |
| Comments |
Lanthanum Strontium Cobalt Iron Oxide Sputtering Targets Information
LSCF6428 Sputtering Targets (La0.6Sr0.4Co0.2Fe0.8O3)
LSCF5582 Sputtering Targets (La0.5Sr0.5Co0.8Fe0.2O3)
Purity: 99.9%;
Circular: Diameter <= 14 inch, Thickness >= 1mm;
Block: Length <= 32 inch, Width <= 12 inch, Thickness >= 1mm.
More Information on Lanthanum Strontium Cobalt Iron Oxide Sputtering Targets
Applications• Ferroelectric• Gate Dielectric • For CMOS |
Features• High purity• Custom sizes available |
Manufacturing Process• Manufacturing - Cold pressed - Sintered, Elastomer bonded to backing plate
• Cleaning and final packaging, Cleaned for use in vacuum, |
Options
• 99.9% minimum purity
• Smaller sizes also available for R&D applications
• Sputtering target bonding service
|

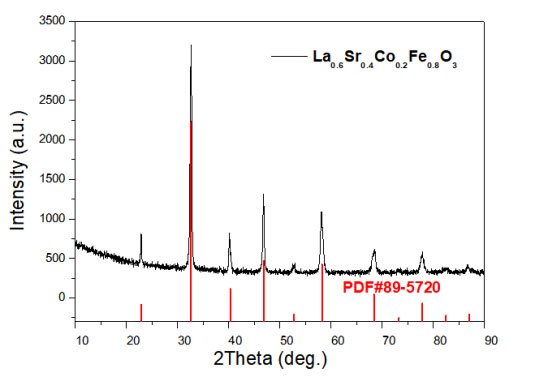

XRD Chart of Lanthanum Strontium Cobalt Iron Oxide Sputtering Targets
