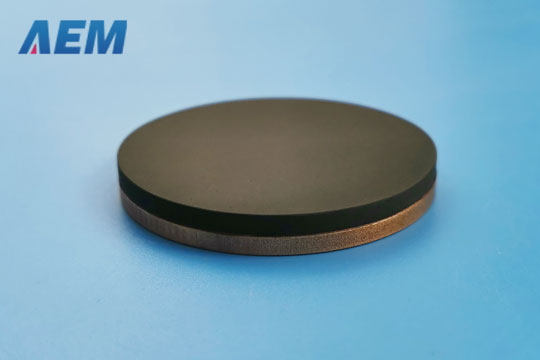

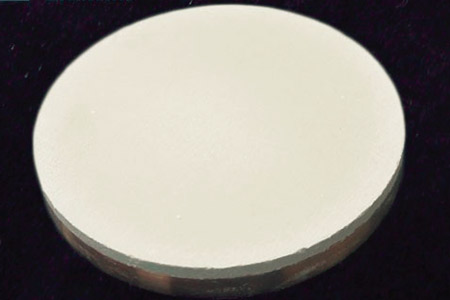

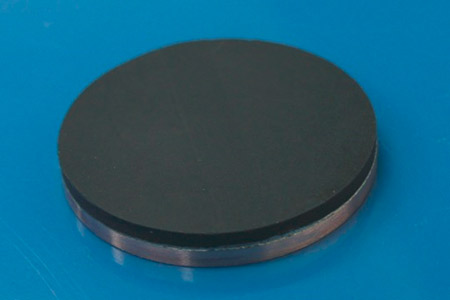

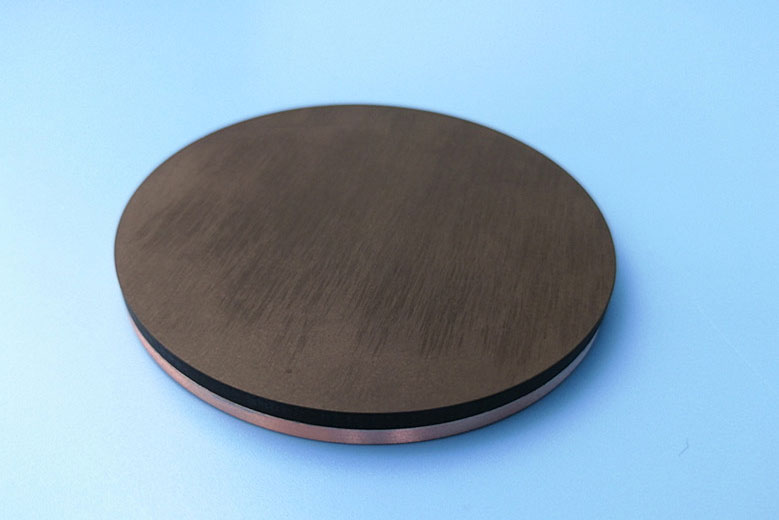

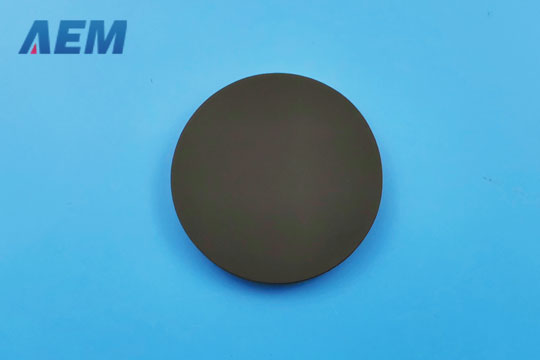

Lanthanum Strontium Cobalt Oxide Sputtering Targets (La0.5Sr0.5CoO3)

Lanthanum Strontium Cobalt Oxide Sputtering Targets (La0.5Sr0.5CoO3)
Material Type Lanthanum Strontium Cobalt Oxide
Symbol La0.5Sr0.5CoO3
Color/Appearance Various colors, Solid
Melting Point (°C) N/A
Relative Density (g/cc) >90%
Z Ratio N/A
Sputter RF, RF-R, DC
Max Power Density*
(Watts/Square Inch)
N/A
Type of Bond Indium, Elastomer
Comments

General

Lanthanum Strontium Cobalt Oxide (La1-xSrxCoO3, La0.5Sr0.5CoO3) has many applications: Catalyst, Superconducting, solid oxide fuel cell cathode, Super capacitor, Ferroelectric storage.

Material Notes

Lanthanum Strontium Cobalt Oxide Sputtering Targets, Purity is 99.9%; Circular: Diameter <= 14inch, Thickness <= 15 mm; Block: Length <= 120 +/-0.1 mm, Width <= 120 +/-0.1 mm,Thickness <= 15 mm. Bonding is recommended for these materials. Many materials have characteristics which are not amenable to sputtering, such as, brittleness and low thermal conductivity.This material may require special ramp up and ramp down procedures. This process may not be necessary with other materials. Targets that have a low thermal conductivity are susceptible to thermal shock.




Other Information of Lanthanum Strontium Cobalt Oxide Sputtering Targets

Applications
• Catalyst
• Superconducting, solid oxide fuel cell cathode

• Super capacitor
• Ferroelectric storage

Features
• High purity & Density
• Custom Sizes Available
• Single Phase

Manufacturing Process
•  In-house powder synthesis, High purity metal oxide precursor materials, High energy mixing, Particle sizing processes
• Multiple step densification, Proprietary processes employed for pressing and sintering

• Cleaning and final packaging, Cleaned for use in vacuum, Protection from environmental contaminants, Protection during shipment
Options
• 99.9% Minimum Purity

• Custom compositions may be available upon request, La1-xSrxCoO3, x=0.4, 0.5....)

• Sputtering target bonding service
