Barium Fluoride Evaporation Material (BaF2)

Barium Fluoride Evaporation Material (BaF2)
Barium Fluoride Evaporation Material (BaF2)
Material Type Barium Fluoride
Symbol BaF2
Color/Appearance White powder and pieces; no odor
Melting Point (°C) 1,353
Theoretical Density (g/cc) 4.89
Z Ratio 0.793
Thermal Evaporation Techniques Boat:  Mo
Temp. (°C) for Given Vap. Press. (Torr) 10-4:  ~700
Comments -


Barium Fluoride (BaF2) is a chemical compound of barium and fluorine and is a salt. It is a solid which can be a transparent crystal. It occurs in nature as the mineral frankdicksonite. Barium fluoride is transparent from the ultraviolet to the infrared, from 150–200 nm to 11–11.5 µm, and can be used as a material to make optical components such as lenses. When heated to 500 °C, it gets corroded by water, but in dry environments it can be used up to 800 °C. Prolonged exposure to moisture degrades transmission in the vacuum UV range. It is less resistant to water than calcium fluoride, but is the most resistant of all the optical fluorides to high-energy radiation, though its far ultraviolet transmittance is lower than theirs. It is quite hard, very sensitive to thermal shock and fractures quite easily.

Material Notes

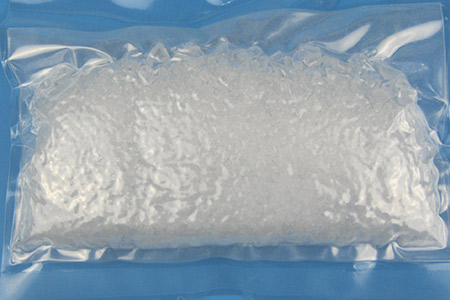

High Purity Barium Fluoride Evaporation Materials in form of pieces, granules, pellets or powder. Subpackage in double-decked plastic bag, vacuum packing in quantities varying from 5-25 grams. Used for thin film research, thermal evaporation and electron microscopy coatings. AEM Deposition is a leading vendor of high purity Barium Fluoride (BaF2) Evaporation Material. Our evaporation materials are available in various purities ranging from 99.9% to 99.99%.

Applications of Barium Fluoride Evaporation Materials

• Used in deposition processes including semiconductor deposition, chemical vapor deposition (CVD) and physical vapor deposition (PVD)
• Used for optics including wear protection, decorative coatings, and displays.

Packing of Barium Fluoride Evaporation Materials

The Barium Fluoride (BaF2) Evaporation Material are vacuum sealed. The MSDS and Material Certification Sheets will be packed with the product.

Click for a downloadable datasheet on the Barium Fluoride Evaporation Material (BaF2)
Can't find the downloadable datasheet you need? Click here to send email to get it.
Click here for answers to some of the most common questions we get asked.
