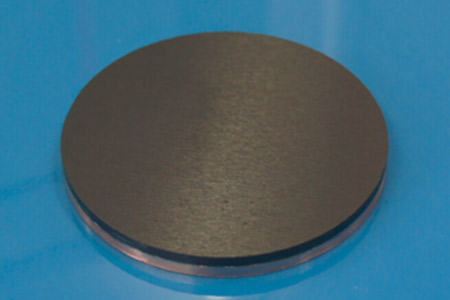

Barium Ferrite Sputtering Targets (BaFe12O19)

Barium Ferrite Sputtering Targets (BaFe12O19)
Material Type Barium Ferrite
Symbol BaFe12O19
Molecular Weight 1111.448
Melting Point (°C) 1300
Theoretical Density (g/cc) 5.4
Color Dark brown
Sputter RF, DC
Max Power Density*
(Watts/Square Inch)

Type of Bond Elastomer, Indium
Comments

General

Material Notes

Barium Ferrite Sputtering Targets, Purity is 99.9%;Circular: Diameter <= 14inch, Thickness >= 1mm; Block: Length <= 32inch, Width <= 12inch, Thickness >= 1mm.



Other Information of Barium Ferrite Sputtering Targets

Applications
  Ferroelectric
• Gate Dielectric

• For CMOS





Features
• High purity
• Custom Sizes Available

Manufacturing Process
• Manufacturing - Cold pressed - Sintered, Elastomer bonded to backing plate

• Cleaning and final packaging, Cleaned for use in vacuum,
Protection from environmental contaminants
Protection during shipment

Options
99.9% ex Strontium Minimum Purity

•Up to 12'' Diameter Targets Available

•Planar Tiles Up to 8'' X 5'' for Larger Target Configurations



Click for a downloadable datasheet on the Barium Ferrite Sputtering Targets (BaFe12O19)
Can't find the downloadable datasheet you need? Click here to send email to get it.
Click here for answers to some of the most common questions we get asked.
