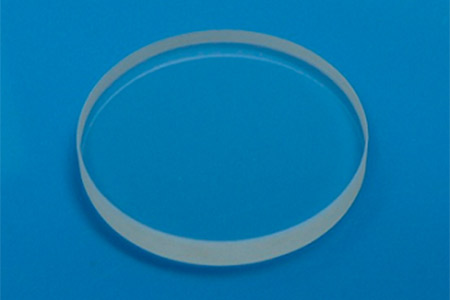

Barium Fluoride Sputtering Targets (BaF2)

Barium Fluoride Sputtering Targets (BaF2)
Barium Fluoride Sputtering Targets (BaF2)
Material Type Barium Fluoride
Symbol BaF2

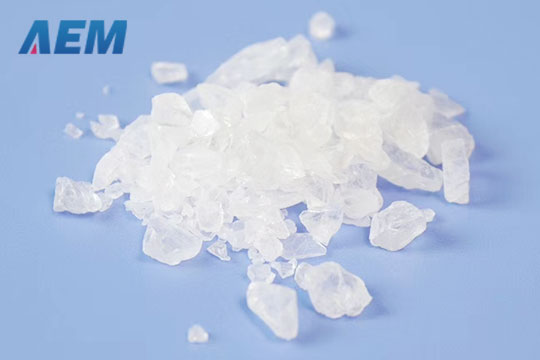

Color/Appearance White, Crystalline Solid
Melting Point (°C) 1,355
Theoretical Density (g/cc) 4.886
Z Ratio 0.793
Sputter RF
Type of Bond Indium, Elastomer
UN Number 1564

Barium Fluoride Sputtering Target

Barium fluoride (BaF2) is a chemical compound of barium and fluorine and is a salt. It is a solid which can be a transparent crystal. It occurs in nature as the mineral frankdicksonite. Barium fluoride is transparent from the ultraviolet to the infrared, from 150–200 nm to 11–11.5 µm, and can be used as a material to make optical components such as lenses.

Barium Fluoride Sputtering Target Information

Barium Fluoride Sputtering Target
Purity is 99.9%;
Circular: Diameter <= 14inch, Thickness >= 1mm;
Block: Length <= 32inch, Width <= 12inch, Thickness >= 1mm.

Other Information of Barium Fluoride Sputtering Target

Applications

•  PVD (physical vapor deposition) and CVD (chemical vapor) deposition display
• Semiconductor

• Optical

Features

• High purity
• Custom Sizes Available

Manufacturing Process

• Manufacturing - Cold pressed - Sintered, Elastomer bonded to backing plate

• Cleaning and final packaging, Cleaned for use in vacuum,
Protection from environmental contaminants
Protection during shipment

Options

• 99.9% Minimum Purity

• Up to 12'' Diameter Targets Available

• Planar Tiles Up to 8'' X 5'' for Larger Target Configurations
