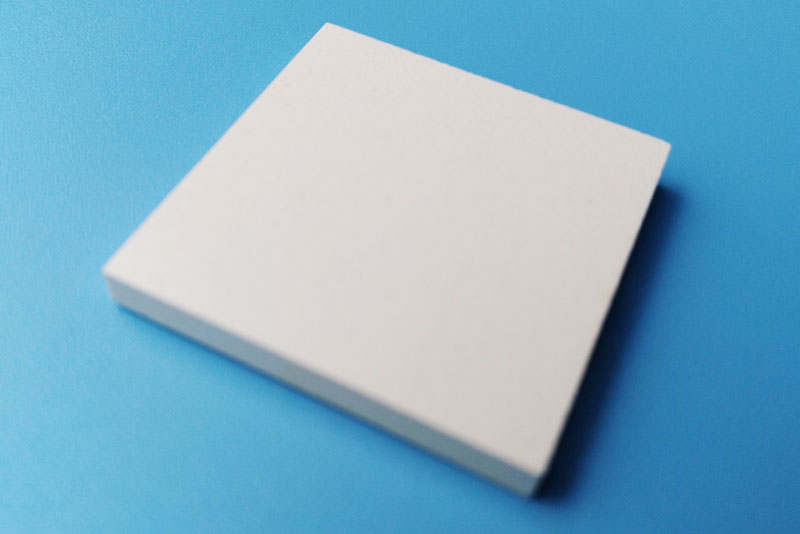

Barium Strontium Titanate Sputtering Targets (Ba(1-x)Sr(x)TiO3)

Barium Strontium Titanate Sputtering Targets (Ba(1-x)Sr(x)TiO3)
Material Type Barium Strontium Titanate
Symbol Ba(1-x)Sr(x)TiO3, BST
Color/Appearance White/off-white, Solid
Melting Point (°C) N/A
Relative Density (g/cc) <6.05
Z Ratio
Sputter RF, DC
Max Power Density*
(Watts/Square Inch)

Type of Bond Indium, Elastomer
Comments

General

Material Notes

Barium Strontium Titanate Sputtering Targets, Purity is 99.9%;Circular: Diameter <= 14inch, Thickness >= 1mm; Block: Length <= 32inch, Width <= 12inch, Thickness >= 1mm.



Other Information of Barium Strontium Titanate Sputtering Targets

Applications
  Ferroelectric
• Gate Dielectric

• For CMOS

Features
• High purity
• Custom Sizes Available

Manufacturing Process
• Manufacturing - Cold pressed - Sintered, Elastomer bonded to backing plate

• Cleaning and final packaging, Cleaned for use in vacuum,
Protection from environmental contaminants
Protection during shipment

Options
99.9% ex Strontium Minimum Purity

•Up to 12'' Diameter Targets Available

•Planar Tiles Up to 8'' X 5'' for Larger Target Configurations
