Zirconium Evaporation Material (Zr)

Zirconium Evaporation Material (Zr)
Zirconium Evaporation Material (Zr)
Material Type Zirconium
Symbol Zr
Atomic Weight 91.224
Atomic Number 40
Color/Appearance Silvery White, Metallic
Thermal Conductivity 22.7 W/m.K
Melting Point (°C) 1,852
Coefficient of Thermal Expansion 5.7 x 10-6/K
Theoretical Density (g/cc) 6.49
Z Ratio 0.6
E-Beam Excellent
Thermal Evaporation Techniques Boat:  W
Temp. (°C) for Given Vap. Press. (Torr) 10-8:  1,477
10-6:  1,702
10-4:  1,987
Export Control (ECCN) 1C234
Comments Alloys with W. Films oxidize readily.


Zirconium is a chemical element with symbol Zr and atomic number 40. The name zirconium is taken from the name of the mineral zircon, the most important source of zirconium. It is a lustrous, grey-white, strong transition metal that resembles hafnium and, to a lesser extent, titanium. Zirconium is mainly used as a refractory and opacifier, although small amounts are used as an alloying agent for its strong resistance to corrosion. Zirconium forms a variety of inorganic and organometallic compounds such as zirconium dioxide and zirconocene dichloride, respectively. Five isotopes occur naturally, three of which are stable.

Material Notes

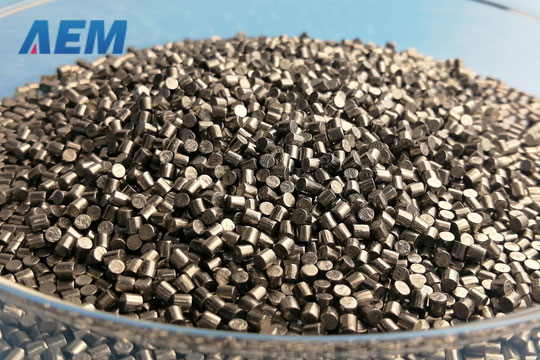

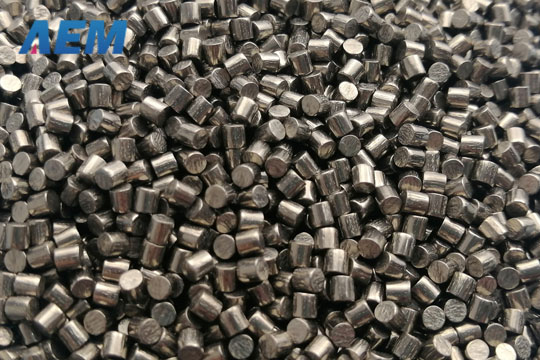

AEM Deposition provides Zirconium pellets, Zirconium pieces, and Zirconium powder for sale, purity is Zr+Hf 99.95%.
