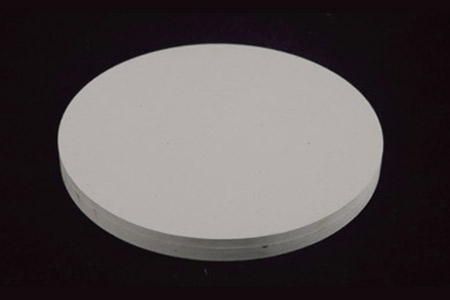

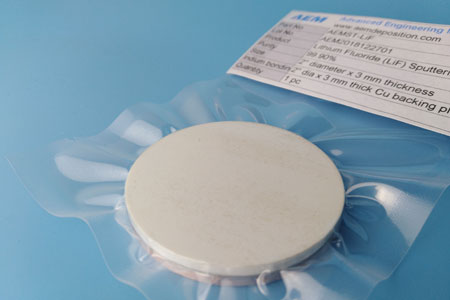

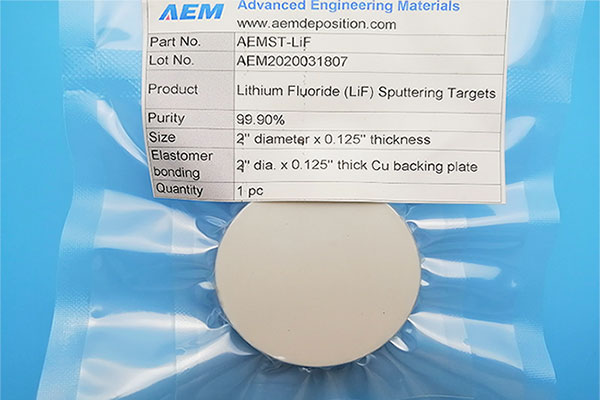

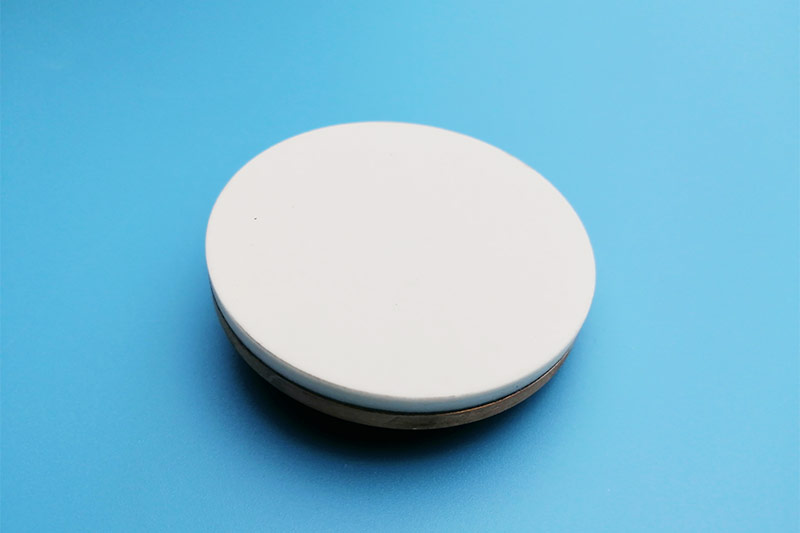

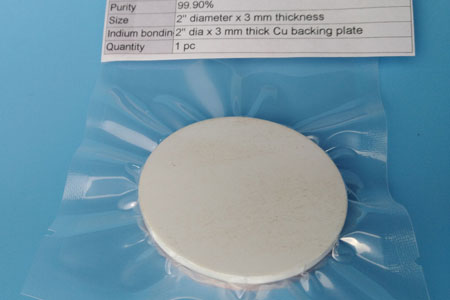

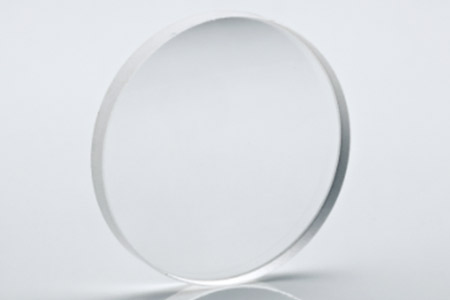

Lithium Fluoride Sputtering Targets (LiF)

Lithium Fluoride Sputtering Targets (LiF)
Material Type Lithium Fluoride
Symbol LiF
Color/Appearance White/Colorless transparent, Solid
Melting Point (°C) 845
Theoretical Density (g/cc) 2.635
Water Solubility Insoluble
Sputter RF, RF-R, DC
Type of Bond Indium, Elastomer
Comments

General

Lithium fluoride is an inorganic compound with the chemical formula LiF. It is a colorless solid, that transitions to white with decreasing crystal size. Although odorless, lithium fluoride has a bitter-saline taste. Its structure is analogous to that of sodium chloride, but it is much less soluble in water. It is mainly used as a component of molten salts. Formation of LiF releases one of the highest energy per mass of reactants, only second to that of BeO.

Material Notes

 Lithium Fluoride Sputtering Target, Purity is 99.9%; Circular: Diameter <= 14inch, Thickness >= 1mm; Block: Length <= 32inch, Width <= 12inch, Thickness >= 1mm.




Other Information of Lithium Fluoride Sputtering Targets

Applications
  Solar energy and fuel cell
•  Flip-chip applications
Features
• High purity
• Custom Sizes Available

Manufacturing Process
• Manufacturing - Cold pressed - Sintered, Elastomer bonded to backing plate

• Cleaning and final packaging, Cleaned for use in vacuum,
Protection from environmental contaminants
Protection during shipment

Options
• 99% Minimum Purity

• Up to 12'' Diameter Targets Available

• Planar Tiles Up to 8'' X 5'' for Larger Target Configurations
