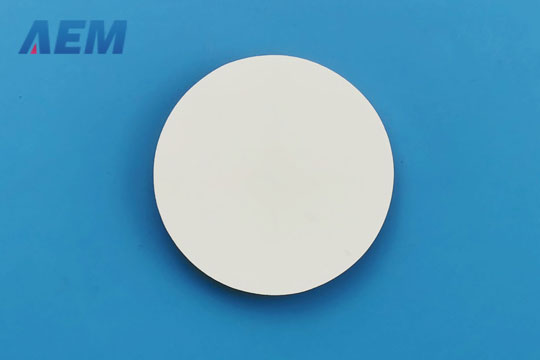

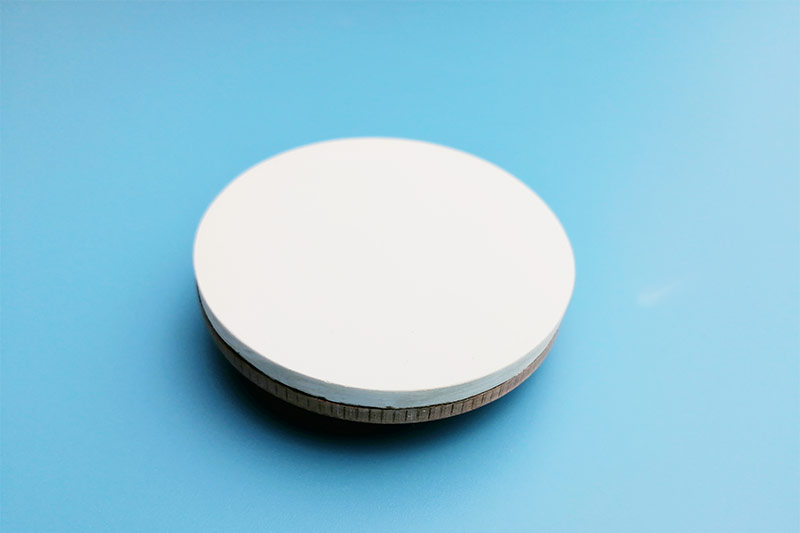

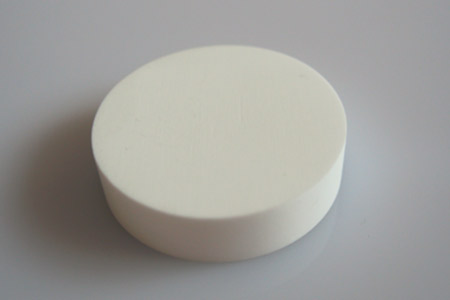

Lithium Phosphate Sputtering Targets (Li3PO4)

Lithium Phosphate Sputtering Targets (Li3PO4)
Lithium Phosphate Sputtering Targets (Li3PO4)Lithium Phosphate Sputtering Targets (Li3PO4)Lithium Phosphate Sputtering Targets (Li3PO4)
Material Type Lithium Phosphate
Symbol Li3PO4
Color/Appearance White / Off-white, Solid
Melting Point (°C) >340
Theoretical Density (g/cc) 2.39
Water Solubility Insoluble
Sputter RF, RF-R, DC
Max Power Density*
(Watts/Square Inch)

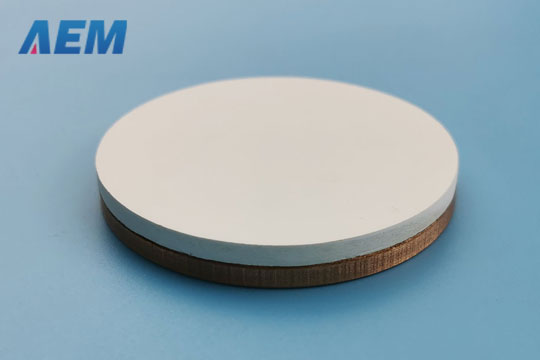

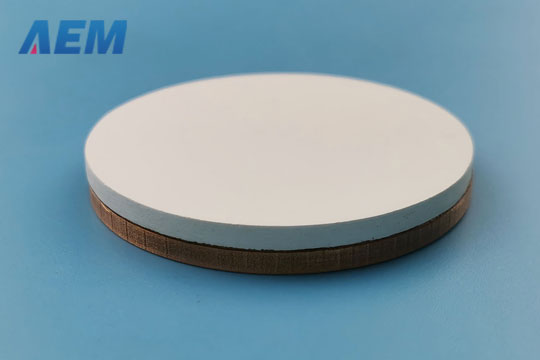

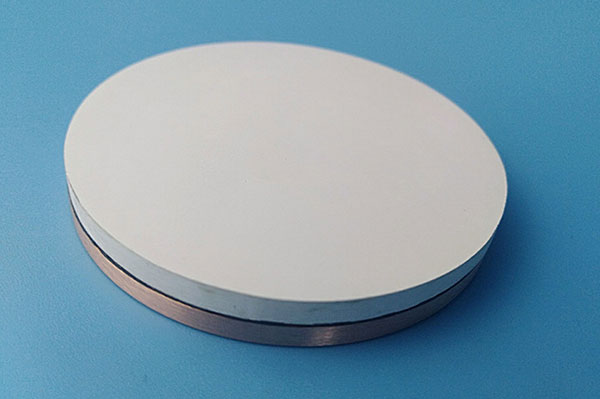

Type of Bond Indium, Elastomer


Material Notes

Lithium Phosphate Sputtering Targets, Purity is 99.99%; Circular: Diameter <= 14inch, Thickness <= 15mm; Block: Length <= 120 +/-0.1 mm, Width <= 120 +/-0.1 mm,Thickness <= 15 mm

Other Information of Lithium Phosphate Sputtering Targets

• Reactively deposited in partial pressure of nitrogen to produce LIPON (lithium phosphorous oxynitride)
• Electrolyte layer in rechargeable thin film batteries
Electrochromic glass
• Lithium battery anode
• High purity
• High density
• Stoichiometric

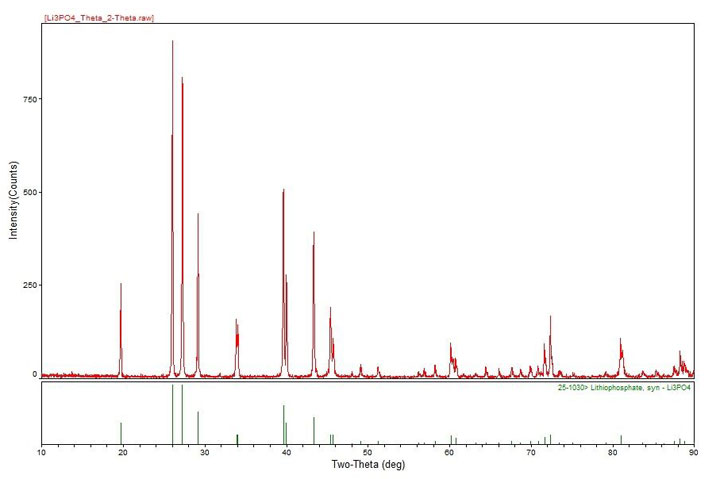

• Phase pure
• Homogenous

Manufacturing Process
•  In-house powder synthesis, High purity precursor materials,  Wet chemistry process utilized for powder synthesis, High energy mixing, Specially formulated calcination schedule, Particle sizing processes
• Multiple step densification,  Proprietary processes employed for pressing and sintering

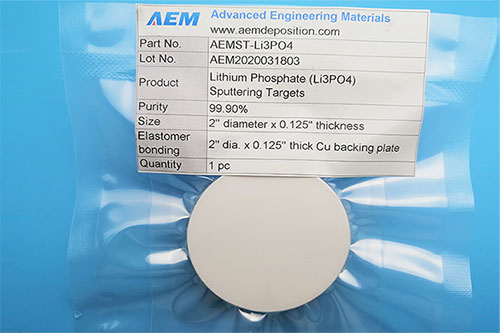

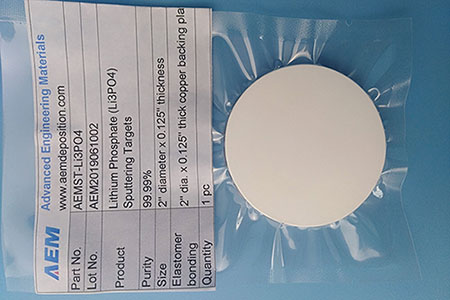

• Cleaning and final packaging, Cleaned for use in vacuum, Protection from environmental contaminants, Protection during shipment
• 99.99% purity
• Custom compositions may be available upon request
• Smaller sizes also available for R&D applications
• Sputtering target bonding service
