AEM Deposition

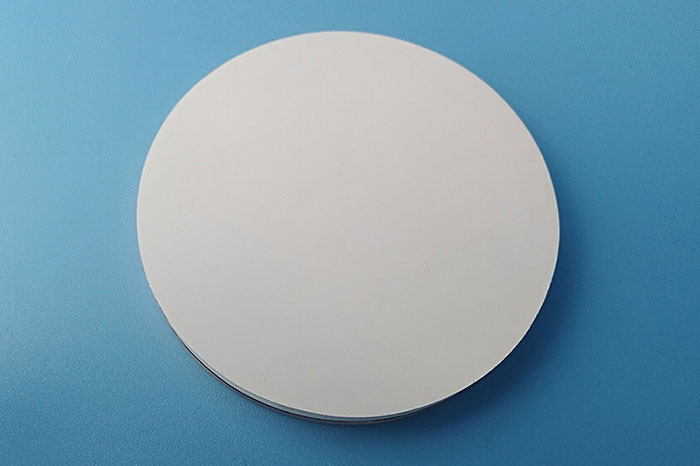

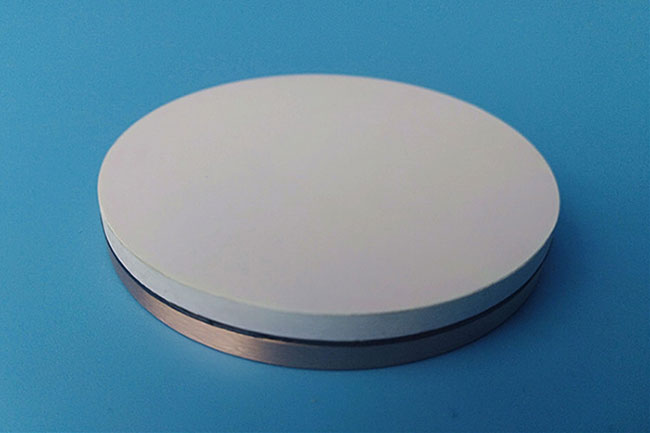

Lithium Niobate Sputtering Targets (LiNbO3)

Lithium Niobate Sputtering Targets (LiNbO3)
Lithium Niobate Sputtering Targets (LiNbO3)Lithium Niobate Sputtering Targets (LiNbO3)Lithium Niobate Sputtering Targets (LiNbO3)Lithium Niobate Sputtering Targets (LiNbO3)
Material Type Lithium Niobate
Symbol LiNbO3
Color/Appearance Various colors, Solid
Melting Point (°C) 1,257
Theoretical Density (g/cc) 4.7
Z Ratio 0.463
Max Power Density*
(Watts/Square Inch)
Type of Bond Indium, Elastomer


The Lithium Niobate (LiNbO3) is proposed as a new anode active material for the Li ion battery. The Niobium can increase the rate with which batteries charge and discharge, increase the stabliity of battery withstand more charging cycles. Niobium plays a improtant role for improving the electrical conductivity, increasing rate capability and ionic conductivity. The coating cathodes with Lithium Niobate (LiNbO3) increase the rate. That can help the battery release more electricity at a faster rate with good effeiciency, and improve the battery longevity and safety.

Material Notes

Lithium Niobate Sputtering Targets, Purity is 99.99%; Circular: Diameter <= 14inch, Thickness <= 15 mm; Block: Length <= 120 +/-0.1 mm, Width <= 120 +/-0.1 mm,Thickness <= 15 mm.


Other Information of Lithium Niobate Sputtering Targets


 Positive Electrode Materials for Li-Ion and Li-Batteries
  Pyroelectric, ferroelectric microelectronics
• High purity & Density
• Custom Sizes Available
• Single Phase
Relative Density: >=85%

Manufacturing Process
•  In-house powder synthesis, High purity metal oxide precursor materials, High energy mixing, Particle sizing processes
• Multiple step densification, Proprietary processes employed for pressing and sintering
• Cleaning and final packaging, Cleaned for use in vacuum, Protection from environmental contaminants, Protection during shipment
99.9% Minimum Purity

• Custom compositions may be available upon request

• Smaller sizes also available for R&D applications
• Sputtering target bonding service
