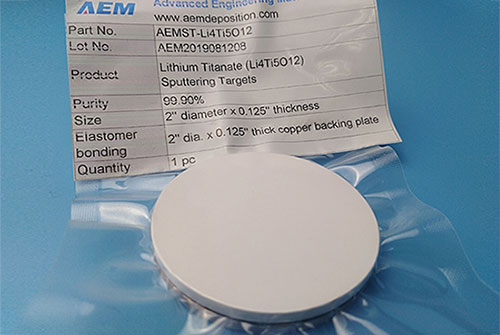

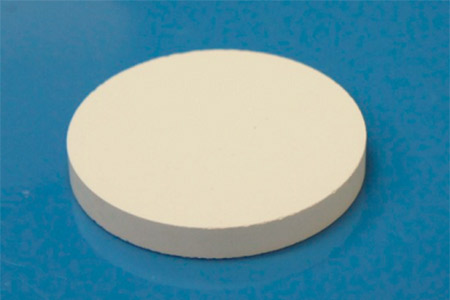

Lithium Titanate Sputtering Targets (Li4Ti5O12)

Lithium Titanate Sputtering Targets (Li4Ti5O12)
Lithium Titanate Sputtering Targets (Li4Ti5O12)Lithium Titanate Sputtering Targets (Li4Ti5O12)Lithium Titanate Sputtering Targets (Li4Ti5O12)
Material Type Lithium Titanate
Symbol Li4Ti5O12
Color/Appearance Various colors, Solid
Melting Point (°C) 1,520
Theoretical Density (g/cc) N/A
Water Solubility Insoluble
Sputter RF, RF-R, DC
Max Power Density*
(Watts/Square Inch)
N/A
Type of Bond Indium, Elastomer
Comments

General



Lithium titanate (Li4Ti5O12) has recently attracted considerable attentions as a potential anode material of LIBs for high power applications due to several outstanding features. Li4Ti5O12 is a good materials used for Electrochromic glass and  Negative Electrode Materials for Li-Ion and Li-Batteries. It has been accepted as a novel anode material of power lithium ion battery instead of carbon, because Li4Ti5O12 can release lithium ions repeatedly for recharging and quickly for high current. However, Due to the electronic structure characterized by empty Ti 3d-states, Lithium titanate (Li4Ti5O12) has an insulating character. This might result in insufficient applications of LTO at high current discharge rate before any materials modifications.

Material Notes

Lithium Titanate Sputtering Targets, Purity is 99.9%; Circular: Diameter <= 14inch, Thickness <= 15 mm; Block: Length <= 120 +/-0.1 mm, Width <= 120 +/-0.1 mm,Thickness <= 15 mm.


Other Information of Lithium Titanate Sputtering Targets

Applications

  Electrochromic glass
  Negative Electrode Materials for Li-Ion and Li-Batteries


Features
• High purity
• High Density (Relative density >80%)
• Single Phase
• Custom Sizes Available

Manufacturing Process
•  In-house powder synthesis, High purity metal oxide precursor materials, High energy mixing, Particle sizing processes
• Multiple step densification, Proprietary processes employed for pressing and sintering

• Cleaning and final packaging, Cleaned for use in vacuum, Protection from environmental contaminants, Protection during shipment
Options
99.9% Minimum Purity

Bonding Services Available, Elastomer bonding is recommended



Click for a downloadable datasheet on the Lithium Titanate Sputtering Targets (Li4Ti5O12)
Can't find the downloadable datasheet you need? Click here to send email to get it.
Click here for answers to some of the most common questions we get asked.
