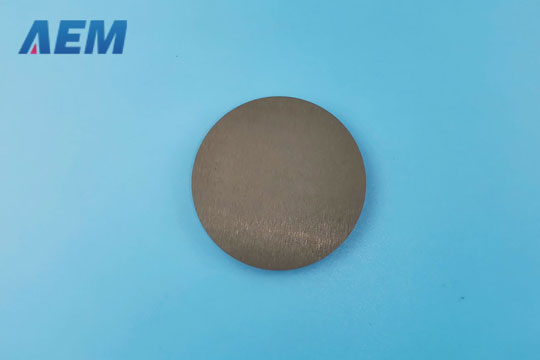

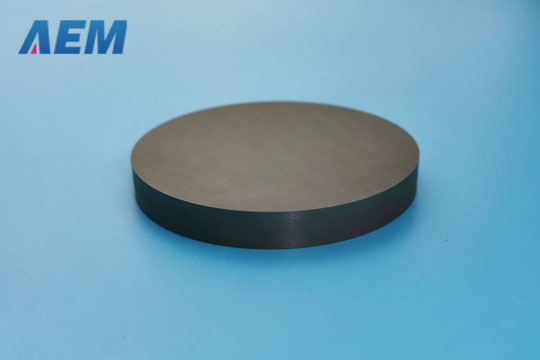

Lithium Cobalt Oxide Sputtering Targets (LiCoO2)

Lithium Cobalt Oxide Sputtering Targets (LiCoO2)
Lithium Cobalt Oxide Sputtering Targets (LiCoO2)
Material Type Lithium Cobalt Oxide
Symbol LiCoO2
Color/Appearance Black, Solid
Melting Point (°C) N/A
Theoretical Density (g/cc) 4.80
Water Solubility Insoluble
Sputter RF, RF-R, DC
Max Power Density*
(Watts/Square Inch)
Type of Bond Indium, Elastomer


The lithium cobalt oxide is a layered structure, which providing a two-dimensional tunnel for lithium ion migration. The LiCoO2 sputtering target is a great materials for making bactteries beacuse the superior electrochemical performance. Those performance includs: average capacity attenuation <0.05% per one cycle, First discharge specific capacity > 135mAh / g and 3.6V initial discharge platform ratio >85%. The LiCoO2 battery can help to increase the battery volume ratio capacity, and product performance is stable, good consistency.
Material Notes

Lithium Cobalt Oxide Sputtering Targets, Purity is 99.9%; Circular: Diameter <= 14inch, Thickness <= 15 mm; Block: Length <= 120 +/-0.1 mm, Width <= 120 +/-0.1 mm,Thickness <= 15 mm.

Other Information of Lithium Cobalt Oxide Sputtering Targets


 Positive Electrode Materials for Li-Ion and Li-Batteries
• High density

• Stoichiometric

• Electrically conductive at room temperature

• Phase pure

Manufacturing Process
•  In-house powder synthesis, High purity metal oxide precursor materials, High energy mixing, Particle sizing processes

• Multiple step densification, Proprietary processes employed for pressing and sintering

• Cleaning and final packaging, Cleaned for use in vacuum, Protection from environmental contaminants, Protection during shipment

99.9% Minimum Purity

• Custom compositions may be available upon request
• Smaller sizes also available for R&D applications
• Sputtering target bonding service
