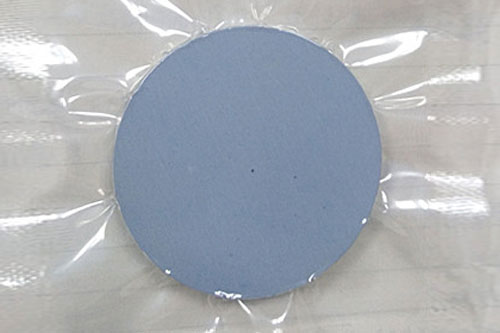

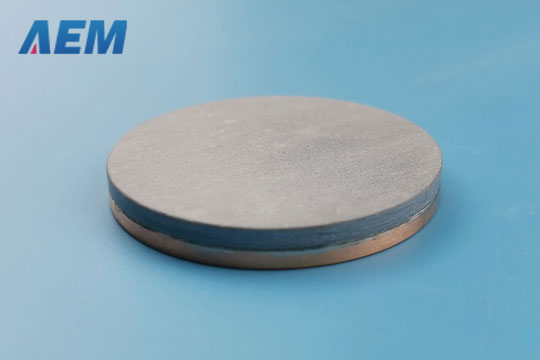

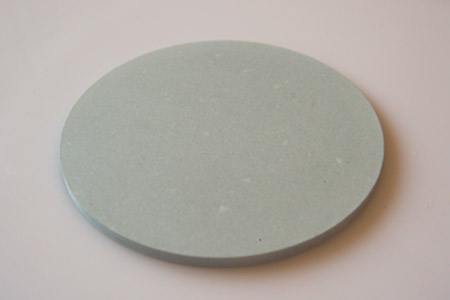

Molybdenum Oxide Sputtering Targets (MoO3)

Molybdenum Oxide Sputtering Targets (MoO3)
Molybdenum Oxide Sputtering Targets (MoO3)Molybdenum Oxide Sputtering Targets (MoO3)
Material Type Molybdenum Oxide
Symbol MoO3
Color/Appearance White to Pale Yellow, Crystalline Solid
Melting Point (°C) 795
Theoretical Density (g/cc) 4.69
Z Ratio **1.00
Sputter RF
Type of Bond Indium, Elastomer
Comments Slight oxygen loss.


Molybdenum trioxide is chemical compound with the formula MoO3. This compound is produced on the largest scale of any molybdenum compound. It occurs as the rare mineral molybdite. Its chief application is as an oxidation catalyst and as a raw material for the production of molybdenum metal.

The oxidation state of molybdenum in this compound is +6.

Material Notes

Molybdenum Oxide Sputtering Targets, Purity is 99.9%; Circular: Diameter <= 14inch, Thickness >= 1mm; Block: Length <= 32inch, Width <= 12inch, Thickness >= 1mm.

We also have high quality pure molybdenum sputtering targets with 99.95% purity  for sale.

Other Information of Molybdenum Oxide Sputtering Targets

• Gate Dielectric

• For CMOS

• High purity
• Custom Sizes Available

Manufacturing Process
• Manufacturing - Cold pressed - Sintered, Elastomer bonded to backing plate

• Cleaning and final packaging, Cleaned for use in vacuum,
Protection from environmental contaminants
Protection during shipment

99.9% ex Strontium Minimum Purity

•Up to 12'' Diameter Targets Available

•Planar Tiles Up to 8'' X 5'' for Larger Target Configurations
