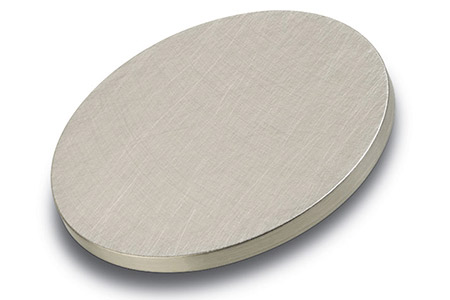

Permalloy Sputtering Targets (Ni/Fe/Mo/Mn)

Permalloy Sputtering Targets (Ni/Fe/Mo/Mn)

General

Material Notes

Permalloy Sputtering Targets, Purity is 99.9%; Circular: Diameter <= 14inch, Thickness >= 1mm; Block: Length <= 32inch, Width <= 12inch, Thickness >= 1mm. NOTE: Ferromagnetic materials require additional consideration when selecting configuration/ thickness. High strength magnets or thinner targets may be required. Bonding these materials creates additional concerns due to the increase in distance from the magnets. Contact your magnetron sputter cathode supplier or reference your equipment manual for additional information.



Other Information of Permalloy Sputtering Targets

Applications
 Semiconductor
• Chemical vapor deposition (CVD)
• Physical vapor deposition (PVD) display
Features
Competitive pricing
• High purity
• Grain refined, engineered microstructure
• Semiconductor grade

Manufacturing Process
Refining
  Three-layer electrolytic process
• Melting and casting
  Electrical resistance furnace - Semi-continuous casting
• Grain refinement
  Thermomechanical treatment
• Cleaning and final packaging - Cleaned for use in vacuum
  Protection from environmental contaminants
  Protection during shipment
Options
99.9% minimum purity
• Planar circular targets up to 18'' (457mm) diameter
• Planar tiles up to 48'' (1200mm) X 15.75'' (400mm) for larger target configurations
• Smaller sizes also available for R&D applications
• Sputtering target bonding service


Click for a downloadable datasheet on the Permalloy Sputtering Targets (Ni/Fe/Mo/Mn)
Can't find the downloadable datasheet you need? Click here to send email to get it.
Click here for answers to some of the most common questions we get asked.
