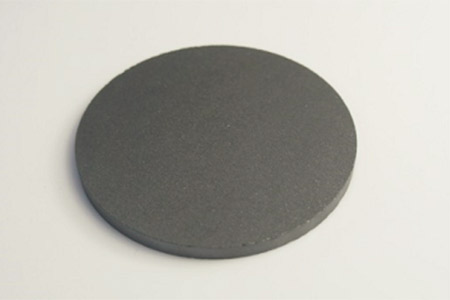

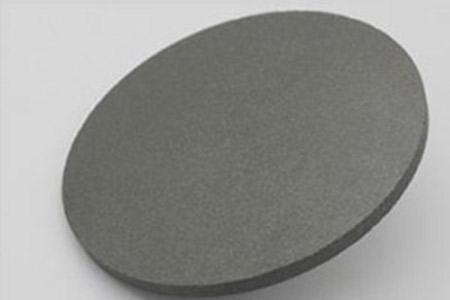

Molybdenum Telluride Sputtering Targets (MoTe2)

Molybdenum Telluride Sputtering Targets (MoTe2)
Material Type Molybdenum Telluride
Symbol MoTe2
Color/Appearance Dark Grey, Metallic Solid
Melting Point (°C) N/A
Theoretical Density (g/cc) 7.78
Water Solubility Insoluble
Sputter RF, RF-R, DC
Type of Bond Indium, Elastomer
Comments

General

Molybdenum(IV) telluride is a compound of molybdenum and tellurium with formula MoTe2, corresponding to a mass percentage of 27.32% molybdenum and 72.68% tellurium. It can crystallise in two dimensional sheets which can be thinned down to monolayers that are flexible and almost transparent. It is a semiconductor, and can fluoresce. It is part of a class of materials called transition metal dichalcogenides. As a semiconductor the band gap lies in the infrared region. This raises the potential use as a semiconductor in electronics or an infrared detector.

Material Notes

Molybdenum Telluride Sputtering Target, Purity is 99.9%; Circular: Diameter <= 14inch, Thickness >= 1mm; Block: Length <= 32inch, Width <= 12inch, Thickness >= 1mm.



Other Information of Molybdenum Telluride Sputtering Targets

Applications
 Semiconductor
• Chemical vapor deposition (CVD)
• Physical vapor deposition (PVD) display

Features
Competitive pricing
• High purity
• Grain refined, engineered microstructure
• Semiconductor grade


Manufacturing Process
Refining
  Three-layer electrolytic process
• Melting and casting
  Electrical resistance furnace - Semi-continuous casting
• Grain refinement
  Thermomechanical treatment
• Cleaning and final packaging - Cleaned for use in vacuum
  Protection from environmental contaminants
  Protection during shipment

Options
99.999% minimum purity
• Planar circular targets up to 18'' (457mm) diameter
• Planar tiles up to 48'' (1200mm) X 15.75'' (400mm) for larger target configurations
• Smaller sizes also available for R&D applications
• Sputtering target bonding service
