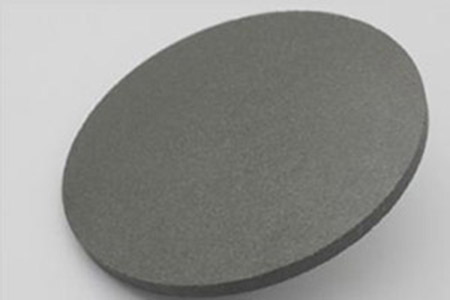

Cadmium Selenide Sputtering Targets (CdSe)

Cadmium Selenide Sputtering Targets (CdSe)
Material Type Cadmium Selenide
Symbol CdSe
Color/Appearance Yellow to Red
Melting Point (°C) >1,350
Theoretical Density (g/cc) 5.81
Z Ratio 1.00
Sputter RF
Max Power Density
(Watts/Square Inch)
20
Type of Bond Indium, Elastomer
UN Number 2570
Comments Evaporates easily.

General

Cadmium selenide is an inorganic compound with the formula CdSe. It is a black to red-black solid that is classified as a II-VI semiconductor of the N-type. Much of the current research on cadmium selenide is focused on its nanoparticles. Bismuth Selenide Sputtering Targets has the highest possible density and smallest possible average grain sizes for use in applicantions.

Material Notes

Cadmium Selenide Sputtering Target, Purity is 99.995%; Circular: Diameter <= 14inch, Thickness >= 1mm; Block: Length <= 32inch, Width <= 12inch, Thickness >= 1mm. Hazardous shipping charges may apply.





Other Information of Cadmium Selenide Sputtering Targets

Applications
  PVD and CVD display
• Semiconductor

• Optical

Features
• High purity
• Custom Sizes Available

Manufacturing Process
• Manufacturing - Cold pressed - Sintered, Elastomer bonded to backing plate

• Cleaning and final packaging, Cleaned for use in vacuum,
Protection from environmental contaminants
Protection during shipment

Options
• 99% Minimum Purity

• Up to 12'' Diameter Targets Available

• Planar Tiles Up to 8'' X 5'' for Larger Target Configurations



Click for a downloadable datasheet on the Cadmium Selenide Sputtering Targets (CdSe)
Can't find the downloadable datasheet you need? Click here to send email to get it.
Click here for answers to some of the most common questions we get asked.
