AEM Deposition

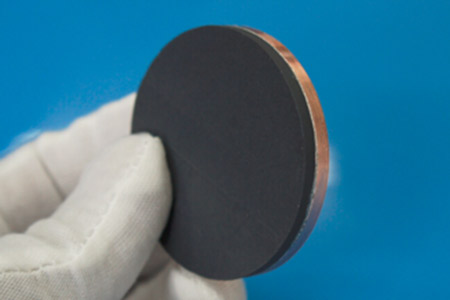

Praseodymium Calcium Manganate Sputtering Targets (Pr0.7Ca0.3MnO3)

Praseodymium Calcium Manganate Sputtering Targets (Pr0.7Ca0.3MnO3)
Praseodymium Calcium Manganate Sputtering Targets (Pr0.7Ca0.3MnO3)
Material Type Praseodymium Calcium Manganate
Symbol Pr0.7Ca0.3MnO3
Color/Appearance Various colors, Solid
Melting Point (°C) N/A
Theoretical Density (g/cc) N/A
Water Solubility Insoluble
Sputter RF, RF-R, DC
Type of Bond Indium, Elastomer



Material Notes

Praseodymium Calcium Manganate Sputtering Targets, Purity is 99.9%; Circular: Diameter <= 14inch, Thickness >= 1mm; Block: Length <= 32inch, Width <= 12inch, Thickness >= 1mm. Bonding is recommended for these materials. Many materials have characteristics which are not amenable to sputtering, such as, brittleness and low thermal conductivity.This material may require special ramp up and ramp down procedures. This process may not be necessary with other materials. Targets that have a low thermal conductivity are susceptible to thermal shock.


Other Information of Praseodymium Calcium Manganate Sputtering Targets

• Gate Dielectric

• For CMOS

• High purity
• Custom Sizes Available

Manufacturing Process
• Manufacturing - Cold pressed - Sintered, Elastomer bonded to backing plate

• Cleaning and final packaging, Cleaned for use in vacuum,
Protection from environmental contaminants
Protection during shipment

• 99.9% ex Strontium Minimum Purity

• Up to 12'' Diameter Targets Available

• Planar Tiles Up to 8'' X 5'' for Larger Target Configurations

Click for a downloadable datasheet on the Praseodymium Calcium Manganate Sputtering Targets (Pr0.7Ca0.3MnO3)
Can't find the downloadable datasheet you need? Click here to send email to get it.
Click here for answers to some of the most common questions we get asked.
