Lanthanum Manganate Sputtering Targets (LaMnO3)

Material Type	Lanthanum Manganate
Symbol	LaMnO₃
Color/Appearance	Black, Solid
Melting Point (°C)	N/A

Relative Density (g/cc)	>90%
Water Solubility	Insoluble
Sputter	RF, RF-R, DC
Max Power Density* (Watts/Square Inch)	N/A
Type of Bond	Indium, Elastomer
Comments

Lanthanum Manganate Sputtering Targets

Lanthanum Manganate (LaMnO3) exhibits rich and exciting physical properties related to a strong interplay between lattice distortions, transport properties, and magnetic ordering. The LaMnO3 thin films have promising applications for electronic transducers, thin film capacitors, and computer memory cells.

Lanthanum Manganate Sputtering Targets Information

Lanthanum Manganate Sputtering Targets
Purity: 99.9%;
Circular: Diameter <= 14 inch, Thickness <= 15 mm;
Block: Length <= 120 +/-0.1 mm, Width <= 120 +/-0.1 mm,Thickness <= 15 mm.

LaMnO3 Target Video

More Information on Lanthanum Manganate Sputtering Targets

Applications

• Thermal barrier, catalyst
• Superconducting, Solid oxide fuel cell

• Super capacitor
• Electromagnetic device

Features

• High purity & density
• Custom sizes available
• Single phase

Manufacturing Process

• In-house powder synthesis, High purity metal oxide precursor materials, High energy mixing, Particle sizing processes

• Multiple step densification, Proprietary processes employed for pressing and sintering

• Cleaning and final packaging, Cleaned for use in vacuum, Protection from environmental contaminants, Protection during shipment

Options

• 99.9% minimum purity

• Custom compositions may be available upon request

• Smaller sizes also available for R&D applications

• Sputtering target bonding service

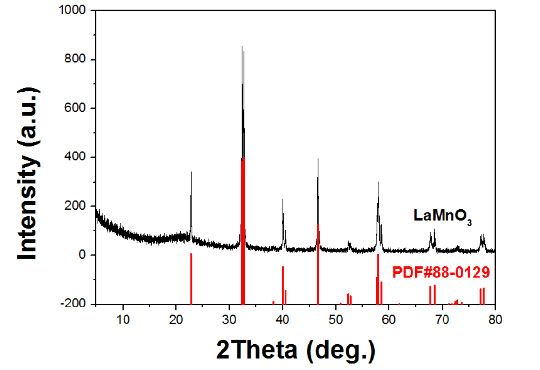

XRD Chart of Lanthanum Manganate Sputtering Targets
