AEM Deposition

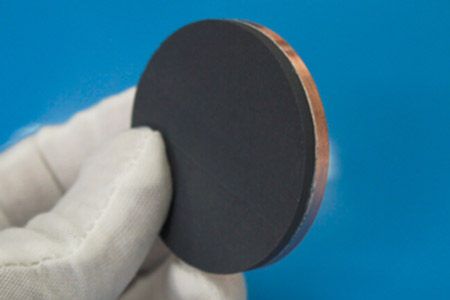

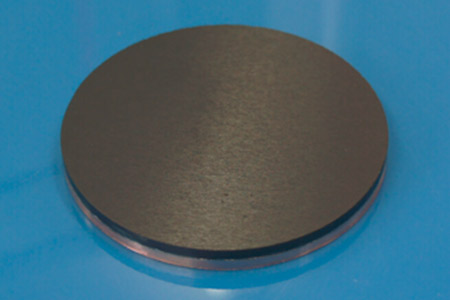

Lanthanum Calcium Manganate Sputtering Targets (La0.7Ca0.3MnO3)

Lanthanum Calcium Manganate Sputtering Targets (La0.7Ca0.3MnO3)
Lanthanum Calcium Manganate Sputtering Targets (La0.7Ca0.3MnO3)
Material Type Lanthanum Calcium Manganate
Symbol La0.7Ca0.3MnO3, LCMO
Color/Appearance Various colors, Solid
Melting Point (°C) N/A
Relative Density (g/cc) >90%
Z Ratio N/A
Sputter RF, RF-R, DC
Max Power Density*
(Watts/Square Inch)
Type of Bond Indium, Elastomer


Lanthanum Calcium Manganate crystals have a transition temperature that tends to increase with high doses of electron irradiation, which in turn allows the persistence of magnetic polarons up to higher temperatures. It has many applications: Antimicrobial drugs, Fuel cells, Metal-air batteries, Water purification technology. Lanthanum Calcium Manganate is noncombustible, but, a very strong oxidizing agent, and is quite sensitive to the amount of oxygen.

Material Notes

Lanthanum Calcium Manganate Sputtering Targets, Purity is 99.9%; Circular: Diameter <= 14inch, Thickness <= 15 mm; Block: Length <= 120 +/-0.1 mm, Width <= 120 +/-0.1 mm,Thickness <= 15 mm. Bonding is recommended for these materials. Many materials have characteristics which are not amenable to sputtering, such as, brittleness and low thermal conductivity.This material may require special ramp up and ramp down procedures. This process may not be necessary with other materials. Targets that have a low thermal conductivity are susceptible to thermal shock.

Other Information of Lanthanum Calcium Manganate Sputtering Targets

• Catalyst
• Superconducting, solid oxide fuel cell cathode

• Super capacitor
• Ferroelectric storage

• High purity & Density
• Custom Sizes Available
• Single Phase

Manufacturing Process
•  In-house powder synthesis, High purity metal oxide precursor materials, High energy mixing, Particle sizing processes
• Multiple step densification, Proprietary processes employed for pressing and sintering
• Cleaning and final packaging, Cleaned for use in vacuum, Protection from environmental contaminants, Protection during shipment
 99.9% Minimum Purity

• Custom compositions may be available upon request

• Smaller sizes also available for R&D applications
• Sputtering target bonding service
