Silicon Monoxide Evaporation Material (SiO)

Silicon Monoxide Evaporation Material (SiO)
Silicon Monoxide Evaporation Material (SiO)
Material Type Silicon (II) Oxide
Symbol SiO
Melting Point (°C) >1,702
Theoretical Density (g/cc) 2.13
Z Ratio 0.87
E-Beam Fair
Thermal Evaporation Techniques Boat:  Ta
Coil:  W
Basket:  W
Crucible:  Ta
E-Beam Crucible Liner Material Fabmate®, Tungsten, Tantalum
Temp. (°C) for Given Vap. Press. (Torr) 10-4:  850
Comments For resistance evaporation, use baffle box and low rate.


Silicon monoxide is the chemical compound with the formula SiO where silicon is present in the oxidation state +2. In the vapour phase it is a diatomic molecule. It has been detected in stellar objects and it has been described as the most common oxide of silicon in the universe.

Material Notes

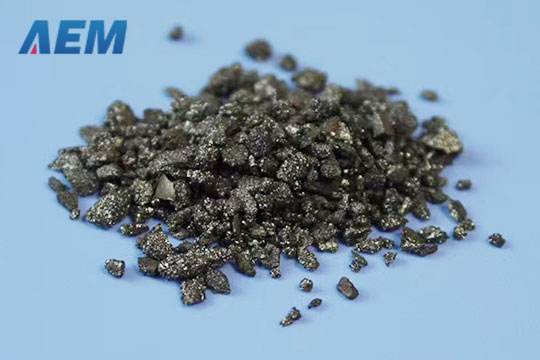

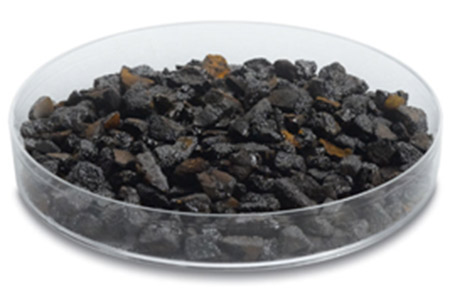

AEM Deposition provides Silicon Monoxide pellets, Silicon Monoxide pieces, and Silicon Monoxide powder for sale, purity is 99.9%.
