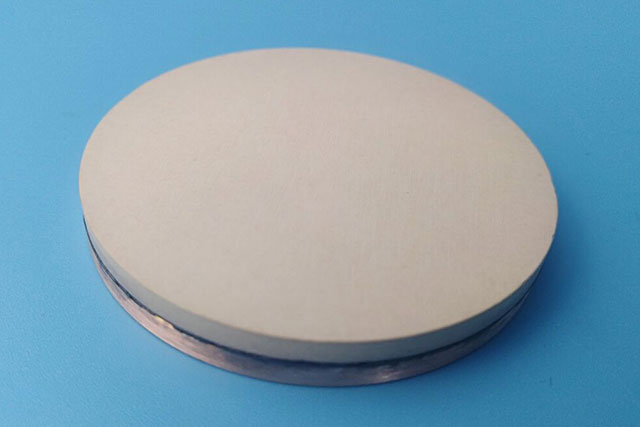

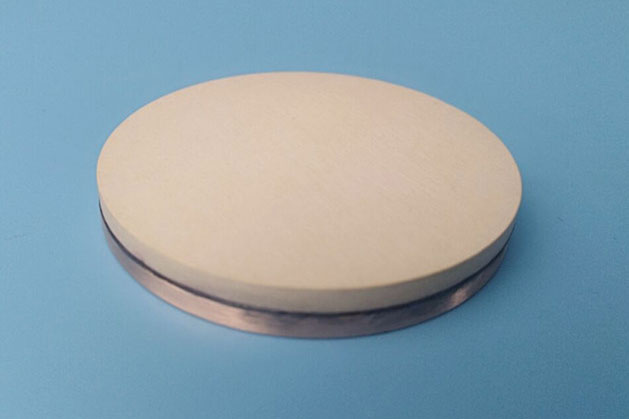

Lanthanum Lithium Titanate Sputtering Targets (La(1-x) LixTiO3)

Lanthanum Lithium Titanate Sputtering Targets (La(1-x) LixTiO3)
Material Type Lanthanum Lithium Titanate
Symbol La1-xLixTiO3
Color/Appearance Various colors, Solid
Melting Point (°C) N/A
Relative Density (g/cc) >90%
Z Ratio N/A
Sputter RF, RF-R, DC
Max Power Density*
(Watts/Square Inch)
N/A
Type of Bond Indium, Elastomer
Comments

General

Lithium Lanthanum Titanium Oxide (Lithium Lanthanum Titanate, LLTO) is a conductive ceramic solid electrolyte material for lithium-ion batteries. It is one of the most promising solid electrolytes for next generation batteries because its high ionic conductivity at room temperature. However, crystalline LLTO has a relatively low grain boundary conductivity, limiting the overall material conductivity.

Material Notes

Lanthanum Lithium Titanate Sputtering Targets, Purity is 99.9%;Circular: Diameter <= 14inch, Thickness <= 15 mm; Block: Length <= 120 +/-0.1 mm, Width <= 120 +/-0.1 mm,Thickness <= 15 mm.

Other Information of Lanthanum Lithium Titanate Sputtering Targets



Applications

  Solid electrolyte material for lithium-ion batteries
  Negative Electrode Materials for Li-Ion and Li-Batteries


Features
• High purity
• High Density (Relative density >85%)
• Single Phase
• Custom Sizes Available



Manufacturing Process
•  In-house powder synthesis, High purity metal oxide precursor materials, High energy mixing, Particle sizing processes
• Multiple step densification, Proprietary processes employed for pressing and sintering

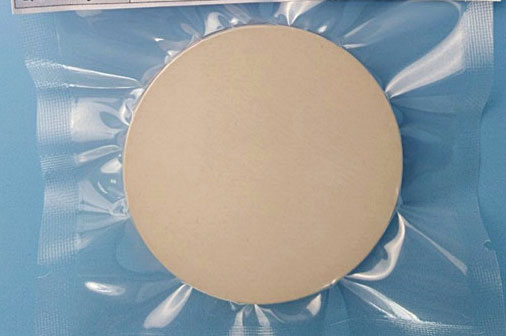

• Cleaning and final packaging, Cleaned for use in vacuum, Protection from environmental contaminants, Protection during shipment
Options

La1-xLixTiO3 ( X=0.33, 0.35...)

• 99.9% Minimum Purity

Bonding Services Available, Elastomer bonding is recommended
