Lanthanum Nickel Oxide Sputtering Targets (LaNiO3)
Material Type | Lanthanum Nickel Oxide |
Symbol | LaNiO3 |
Color/Appearance | Various colors, Solid |
Melting Point (°C) | N/A |
Relative Density (g/cc) | >90% |
Z Ratio | N/A |
Sputter | RF, RF-R, DC |
Max Power Density* (Watts/Square Inch) |
N/A |
Type of Bond | Indium, Elastomer |
Comments |

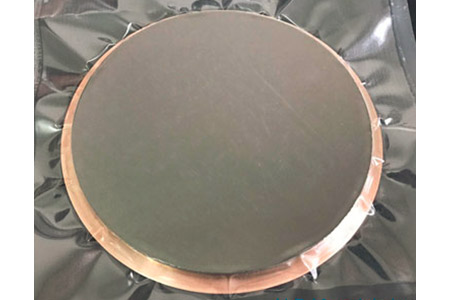

Lanthanum Nickel Oxide Sputtering Targets
The recent theoretical prediction for superconductivity in LaNiO3 thin films has also triggered intensive research efforts. LaNiO3 seems to be the only rare-earth nickelate that stays metallic and paramagnetic down to the lowest temperatures. The LaNiO3 thin films are suitable materials for catalysts, superconducting, solid oxide fuel cell cathode, and supercapacitor.
Lanthanum Nickel Oxide Sputtering Targets Information
Lanthanum Nickel Oxide Sputtering Targets
Purity: 99.9%;
Circular: Circular: Diameter <= 14 inch, Thickness <= 15 mm;
Block: Length <= 120 +/-0.1 mm, Width <= 120 +/-0.1 mm,Thickness <= 15 mm.
More Information on Lanthanum Nickel Oxide Sputtering Targets
Applications• Catalyst• Superconducting, Solid oxide fuel cell cathode
• Super capacitor |
Features• High purity & density• Custom sizes available • Single phase |
Manufacturing Process• In-house powder synthesis, High purity metal oxide precursor materials, High energy mixing, Particle sizing processes
• Multiple step densification, Proprietary processes employed for pressing and sintering
• Cleaning and final packaging, Cleaned for use in vacuum, Protection from environmental contaminants, Protection during shipment
|
Options• 99.9% minimum purity• Custom compositions may be available upon request
• Smaller sizes also available for R&D applications
• Sputtering target bonding service
|
