Titanium Evaporation Material (Ti)

Titanium Evaporation Material (Ti)
Titanium Evaporation Material (Ti)
Material Type Titanium
Symbol Ti
Atomic Weight 47.867
Atomic Number 22
Color/Appearance Silvery Metallic
Thermal Conductivity 21.9 W/m.K
Melting Point (°C) 1,660
Coefficient of Thermal Expansion 8.6 x 10-6/K
Theoretical Density (g/cc) 4.5
Z Ratio 0.628
E-Beam Excellent
Thermal Evaporation Techniques Boat:  W
Crucible:  TiC,Ti2​-BN
E-Beam Crucible Liner Material Fabmate®, Intermetallic​
Temp. (°C) for Given Vap. Press. (Torr) 10-8:  1,067
10-6:  1,235
10-4:  1,453
Comments Alloys with W/Ta/Mo; evolves gas on first heating.


Titanium is a common material found in a myriad of products including watches, drill bits, laptops, and bicycles, just to name a few. In pure form, it is lustrous and silvery-white in appearance. It has a melting point of 1,660°C, a density of 4.5 g/cc, and a vapor pressure of 10-4 Torr at 1,453°C. It is a sturdy material which is easily fabricated when heat is applied. Its strong, lightweight characteristics and excellent corrosion resistance make it ideal for ocean liner hulls, aircraft engines, and designer jewelry. Titanium is biocompatible so it can be found in surgical tools and implants. Titanium is generally evaporated in vacuum for the purposes of wear and decorative, semiconductor, and optical coating.

Material Notes

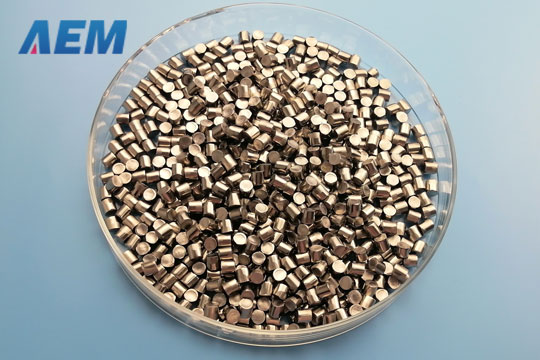

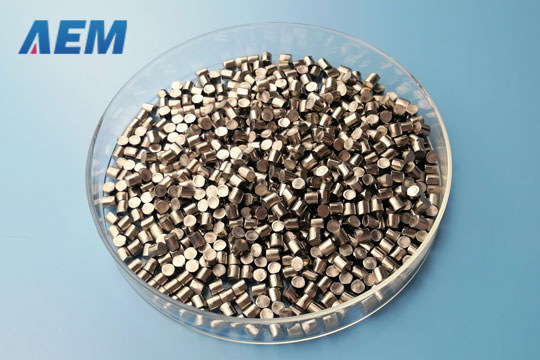

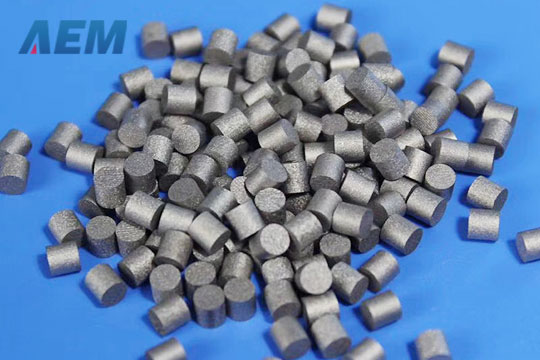

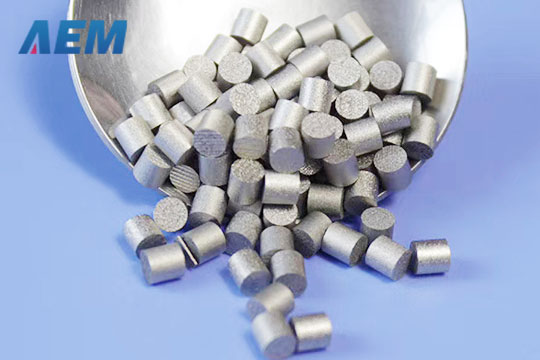

AEM Deposition provides Titanium pellets, Titanium wires, and Titanium powder, purity is 99.7% to 99.995%.
