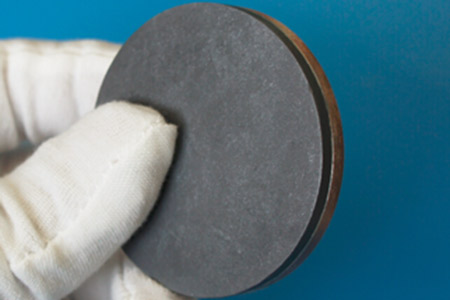

Silver Telluride Sputtering Targets (Ag2Te)

Silver Telluride Sputtering Targets (Ag2Te)
Material Type Silver Telluride
Symbol Ag2Te
Color/Appearance Various Colors, Solid
Melting Point (°C) N/A
Theoretical Density (g/cc) N/A
Water Solubility Insoluble
Sputter RF, RF-R, DC
Type of Bond Indium, Elastomer
Comments

General

Silver telluride (Ag2Te) is a chemical compound, a telluride of silver, also known as disilver telluride or silver(I) telluride. It forms a monoclinic crystal. In a wider sense, silver telluride can be used to denote AgTe (silver(II) telluride, a metastable compound) or Ag5Te3.

Material Notes

Silver Telluride Sputtering Target, Purity is 99.99%; Circular: Diameter <= 14inch, Thickness >= 1mm; Block: Length <= 32inch, Width <= 12inch, Thickness >= 1mm.




Other Information of Silver Telluride Sputtering Targets

Applications
 Semiconductor
• Chemical vapor deposition (CVD)
• Physical vapor deposition (PVD) display

Features
Competitive pricing
• High purity
• Grain refined, engineered microstructure
• Semiconductor grade


Manufacturing Process
Refining
  Three-layer electrolytic process
• Melting and casting
  Electrical resistance furnace - Semi-continuous casting
• Grain refinement
  Thermomechanical treatment
• Cleaning and final packaging - Cleaned for use in vacuum
  Protection from environmental contaminants
  Protection during shipment

Options
99.999% minimum purity
• Planar circular targets up to 18'' (457mm) diameter
• Planar tiles up to 48'' (1200mm) X 15.75'' (400mm) for larger target configurations
• Smaller sizes also available for R&D applications
• Sputtering target bonding service
