AEM Deposition

Nickel Chromium Evaporation Material (Ni/Cr)

Nickel Chromium Evaporation Material (Ni/Cr)
Nickel Chromium Evaporation Material (Ni/Cr)
Material Type Nichrome IV® †
Symbol Ni/Cr
Melting Point (°C) 1,395
Theoretical Density (g/cc) 8.5
Ferromagnetic Magnetic Material
Z Ratio **1.00
E-Beam Excellent
Thermal Evaporation Techniques Boat:  ***
Coil:  W
Basket:  W, Ta
Crucible:  Al2O3
E-Beam Crucible Liner Material Fabmate®
Temp. (°C) for Given Vap. Press. (Torr) 10-8:  847
10-6:  987
10-4:  1,217
Comments Alloys with W/Ta/Mo.

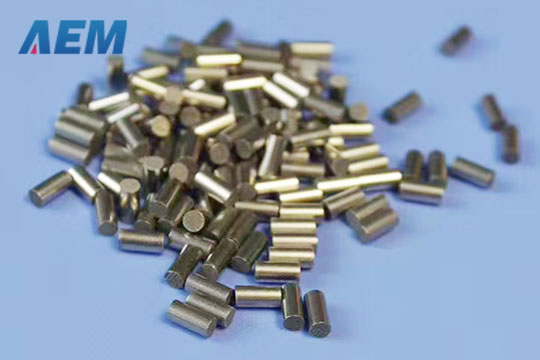

Nickel/Chromium pellets are available in several different dimensions for use as an evaporation source material. AEM can produce materials with high purity in applications.

Material Notes

AEM Deposition provides Nickel/Chromium pellets , and Nickel Chromium powder for sale, purity is 99.9%.

Click for a downloadable datasheet on the Nickel Chromium Evaporation Material (Ni/Cr)
Can't find the downloadable datasheet you need? Click here to send email to get it.
Click here for answers to some of the most common questions we get asked.
